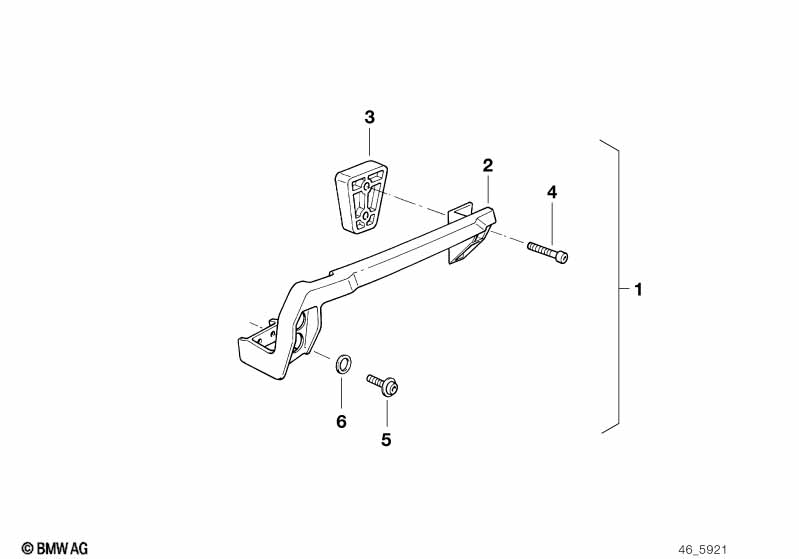

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Set case holder

Set case holder
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Set case holder 1 71602316727 $212.34 +core
02 Left case holder 1 46542316421 $88.75 +core
02 Case holder right 1 46542316422 $88.75 +core
03 Spacer 2 46542316420 $6.95
04 Fillister-head screw M6X35-Z1-8.8-MK 4 07119900611 $1.58
04 Fillister-head screw M6X35 4 46542351545 $2.43
05 Fillister head screw M8X20-A2-80 SW 2 46712351538 $2.80
06 Washer 2 31422310341 $0.84
Notes
  • +core = plus core charge (possibility of a return of the old part)
