259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Retrofit kit, Top Case bracket

Retrofit kit, Top Case bracket

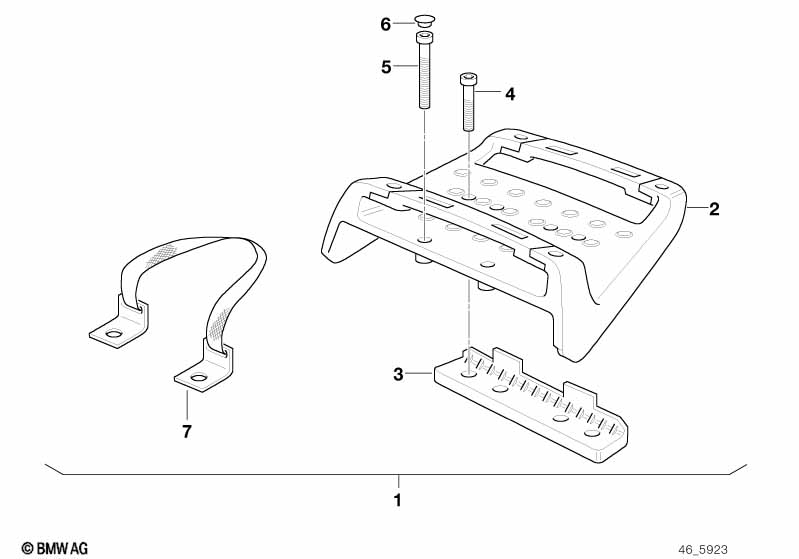

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Retrofit kit, Top Case bracket 35 LTR. 1 46542316645 ENDED, +core
02 Top Case carrier 1 46542316673 $98.75 +core
03 Clamp plate 1 46542316626 $22.50
04 ISA screw M6X30-8.8-ZNNIV 4 07129905386 $0.86
05 Fillister-head screw M6X60-8.8-ZNS3 2 07119904509 $2.37
06 Protection cap black 6 46542315618 $1.19
07 Strap modification set 1 46542316674 $32.34
only in conjunction with
-- Bush 2 46542316675 ENDED
-- Hex bolt M6X30-Z3 2 07119913980 $0.60
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
