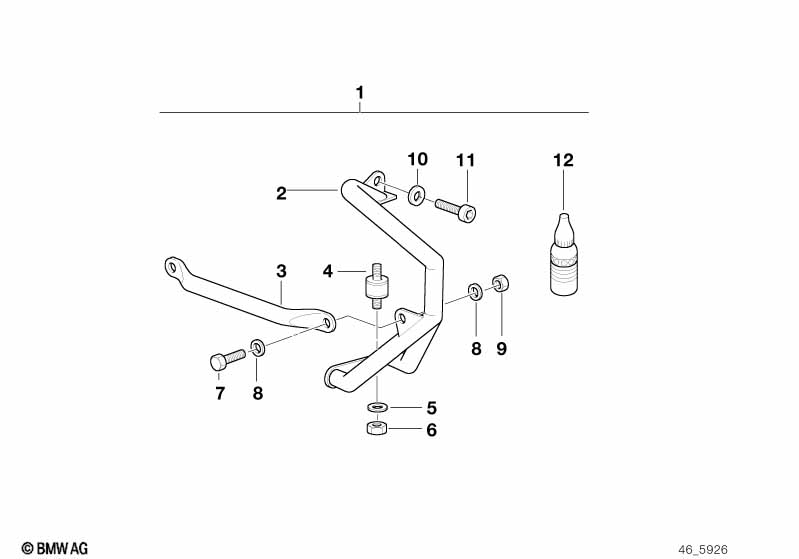

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Engine protection bar set

Engine protection bar set
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine protection bar set 1 46712319520 $451.14 ENDED, +core
only in conjunction with
-- Kleber Loctite 638 50ML 1 81229407420
02 Left engine protection bar 1 46712319521 $214.02 +core
02 Right engine protection bar 1 46712319522 $214.02 +core
03 Crossover 1 46712317047 $57.42
04 Rubber Mounting 4 46712317048 $13.88
05 Washer A6,4-ZNNIV SI 4 07119904202
06 Hex nut M6-8-ZNNIV SI 4 07129905817
07 Hex bolt M8X20-ZNNIV SI 2 07119903039
08 Washer A8,4-ZNS 4 07119931019 $0.40
09 Self-locking hex nut M8-8-ZNS3 2 07129904002 $0.18
10 Washer 18X8,4X3 2 13512243795 $0.30
11 Fillister-head screw M8X30-8.8-ZNS 2 07119901025 $0.47
12 Kleber Loctite 638 50ML 1 81229407420
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
