259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Collapsible stand/side stand

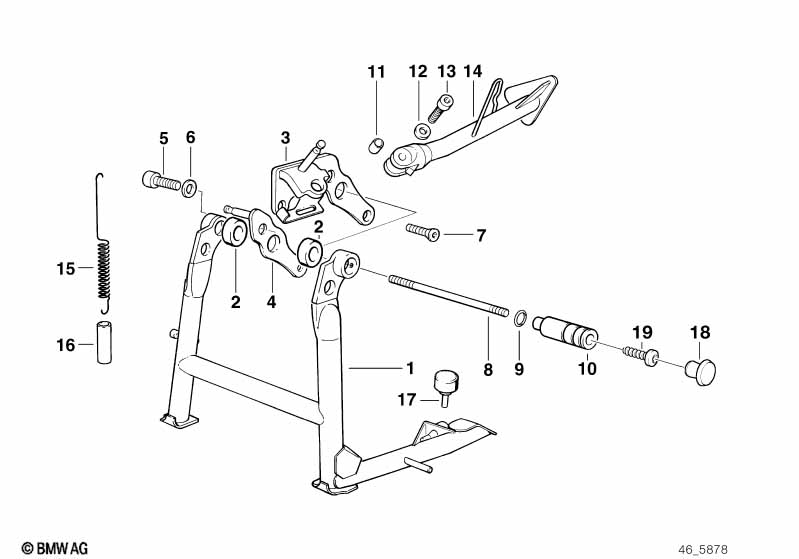

Collapsible stand/side stand
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Center stand 1 46522314336 $275.71 +core
02 Spacer left 2,5 1 46522330367 $3.47
02 Spacer right 4,5 1 46522330368 $3.47
03 Bracket left 1 46522325381 $126.34 +core
04 Bracket right 1 46522314564 $15.21
05 Fillister-head screw M12X30 2 07119900557 $3.02
06 Washer 12-200 HV-ZNS3 2 07119906063
07 Countersunk head screw M8X25-8.8 1 07119900138 $2.64
08 Stud bolt M8X105 1 07119910283 $4.19
09 O-ring 17X1,8 6 07119900500 $1.15
10 Bolt 2 46522314427 $26.89
11 Bushing 1 46537663055 $9.16
12 Washer ZNS3 1 07119904198 $0.45
13 Fillister-head screw M10X30-8.8-ZNS 1 07119901049 $1.30
13 Torx bolt M10X1X30 1 11367545863 $1.60
14 Side stand 1 46532335555 $176.17 +core
15 Tension spring 4 46522314780 $5.68
16 Rubber grommet 4 46522314177 $1.74
19 Fillister head screw M8X16 2 46522325159 $2.03
Notes
  • +core = plus core charge (possibility of a return of the old part)
