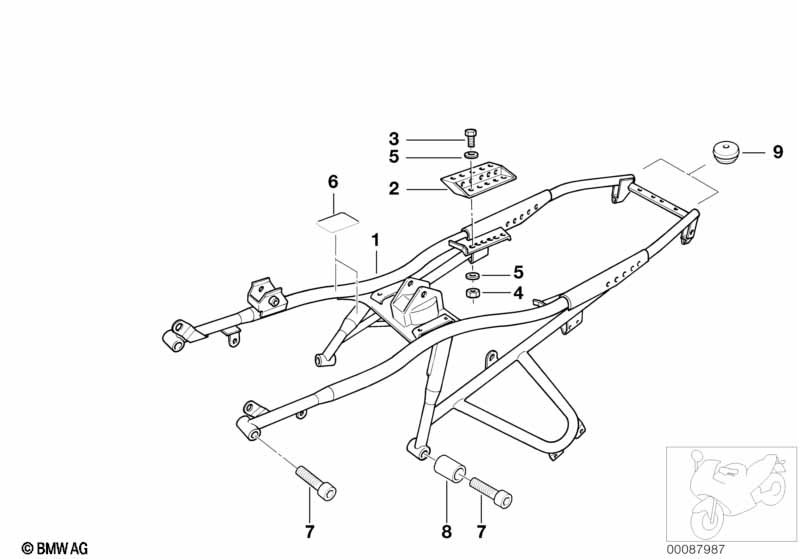

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Rear frame

Rear frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear frame 1 46512320701 $1027.85 +core, SI 463296717
02 Holder 2 46512314464 $15.86
03 Hex bolt M6X14-10.9-MK 4 07119913456 $0.87
04 Hex nut M6-8-ZNNIV SI 4 07119905543 $0.38
05 Washer A6,4-ZNNIV SI 8 07119904202
06 Protection foil 25X30 1 46512330634 $1.61
06 Foil 3 46542315901 $3.60
For vehicles with
National version Australia
or
National version Brazil

Y734A=Yes

Y739A=Yes
07 ISA screw M10X55 2 07129907092
08 Spacer sleeve 2 46512325938 $17.98
09 Blind plug 2 51711130780 $0.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
