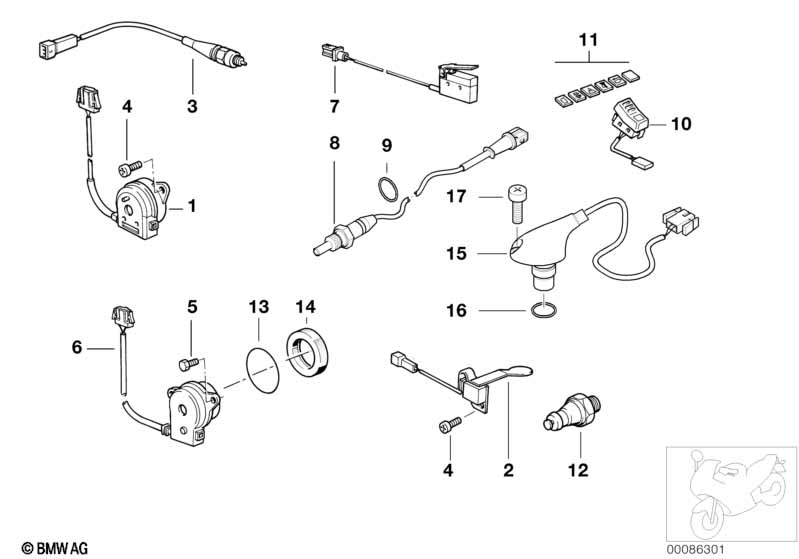

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Various switches

Various switches
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Switch, kickstand 1 61312306060 $56.59 +core
02 Brake light switch foot brake 1 61311459747 $53.78 +core
03 Switch 1 61311459569 $25.06 +core
04 Fillister-head screw M5X8 2 12312322411 $0.58
05 Hex bolt M4X12-8.8-ZNFE 2 07119901996 $1.39 ENDED
06 Idle switch 1 61312306202 $56.59 +core
only in conjunction with
-- Shaft seal 10X22X6 1 23311340363 $24.50 +core
-- O-ring 27,5X2 1 23311341836 $3.35
07 Front stop light switch 1 61311459870 $45.44 +core
08 Temperature sensor 1 12611341602 $100.00 +core
09 Gasket ring A14X18-AL 1 07119963200 $0.38
10 Switch handle heated L=210MM 1 61311459982 $51.46 +core
10 Switch ABS 1 61312306501 $55.60 +core
10 Hazard warning switch 1 61312306503 $44.61 +core
11 Symbol hazzard warning 1 61311244709 $5.65
11 Symbol handle heatet 1 61311459360 $5.65 +core
11 Anti block system symbol 1 61312306502 $6.18
12 Oil pressure switch 0,15 BAR 1 11411342807 $19.75 +core
only in conjunction with
-- Fixing clamp A=2.0-2.5MM 1 61312306377 $0.84
13 O-ring 27,5X2 1 23311341836 $3.35
14 Shaft seal 10X22X6 1 23311340363 $24.50 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
