259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Dashboard mounting parts

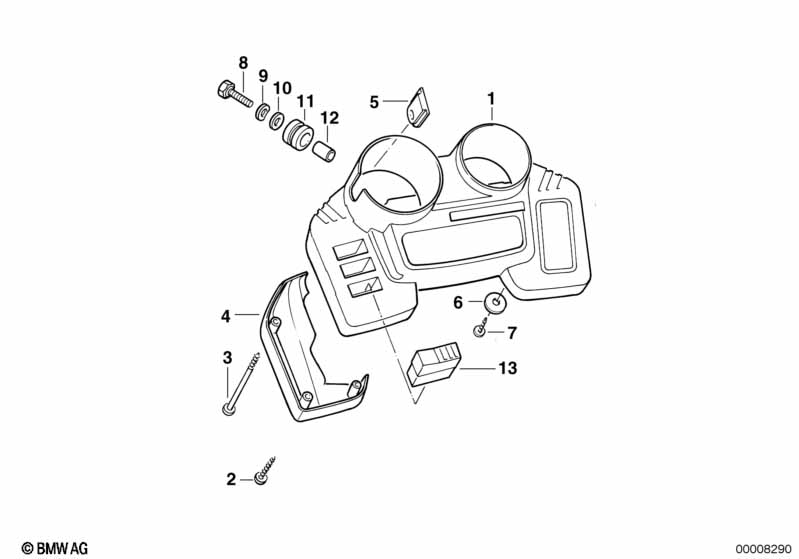

Dashboard mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Dashboard support 1 62212306472 $47.01
01 Instrument carrier /information display FID 1 62212306529 $47.01 +core
02 Screw 3,5X20 5 62141244766 $0.81
03 Fillister head self-tapping screw 1 62111459896 $0.56
04 Cover left 1 62212306497 $13.30
04 Cover right 1 62212306498 $13.30
05 Grommet 1 61212306320 $2.58
06 Washer 1 65132225757 $1.97
07 Fillister head screw 5X14 1 07149149273 $0.56
08 Hex bolt M6X30 2 07119913101 $0.60
09 Wave washer A6 2 07119932096 $0.38
10 Washer 6,4 2 07119936408 $0.40
11 Rubber grommet 3 31421235615 $2.03
12 Bush 2 31421232242 $2.49
13 Covering cap 2 32711459318 $2.03
Notes
  • +core = plus core charge (possibility of a return of the old part)
