259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Hand protector

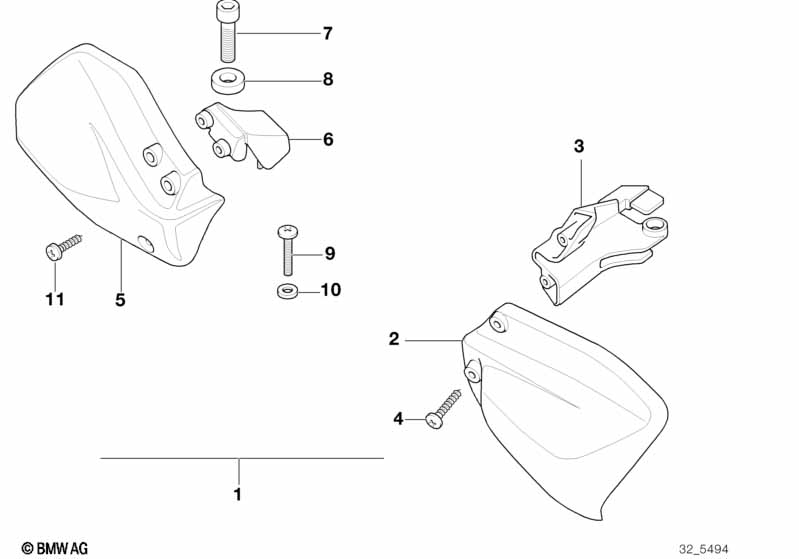

Hand protector
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Set hand protector 1 71602340208 $58.75 +core
02 Hand guard, black, left 1 71602340209 $21.61
03 Adapter, black, left 1 71602340213 $11.28
04 Sheet metal screw ST 4,2X19 2 46632309201 $2.39
05 Hand guard, black, right 1 71602340212 $21.61
06 Adapter, black, right 1 71602340214 $11.28
07 Fillister-head screw M8X40 1 71602317406 $2.96
08 Bush right 1 71602317405 $4.86
09 Fillister head screw M5X20 1 07119906853 $0.40
10 Washer 5,3-140 HV-ZNS 1 07119936439 $0.40
11 Sheet metal screw ST 4,2X13 2 46632309853 $1.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
