R21 (R 1150 GS) R 1150 GS 00 (0415,0495) Front aggregate protective plate

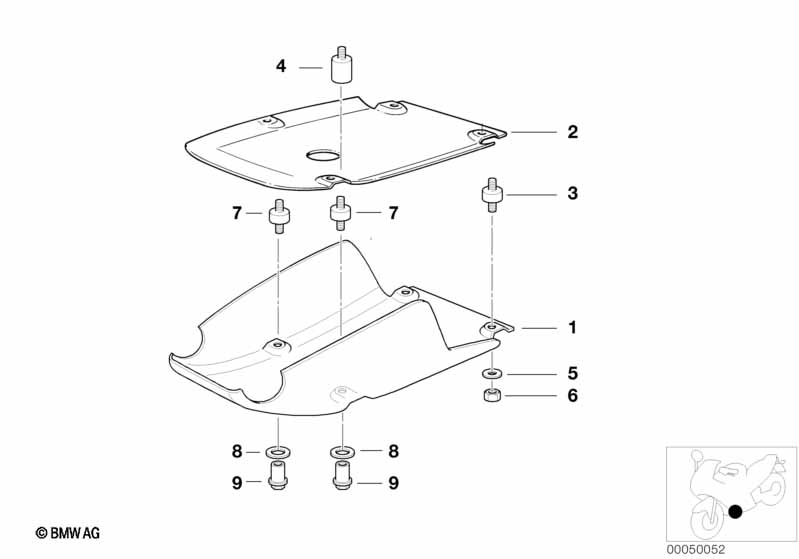

Front aggregate protective plate
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exterior engine protection part 1 11111342936 $116.74 +core
02 Interior engine protection part 1 11111341637 $33.51
03 Rubber Mounting M6X15 / 25X10MM 2 11111340864 $5.60
04 Spacer M8X16 / 26MM 1 11111340863 $10.25
05 Washer A6,4-200HV-ZNS3 2 07119903791 $0.11
06 Hex nut M6-8-ZNNIV SI 2 07129905817
07 Rubber Mounting L=47MM 2 11111343054 $12.29
09 Cap nut M6 2 11121738607 $3.10
Notes
  • +core = plus core charge (possibility of a return of the old part)
