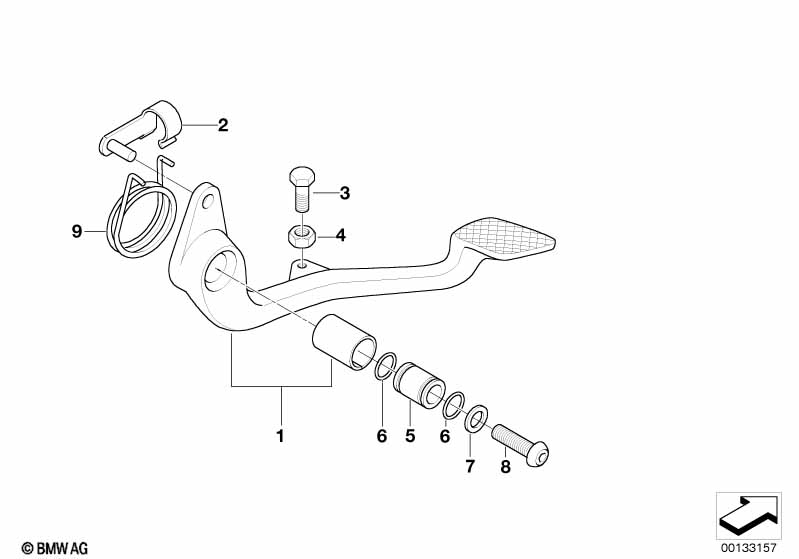

259C (R 850 C, R 1200 C) R 1200 C 97 (0424,0434) Brake pedal
| No. |
Description |
Supp. |
Qty |
From |
Up To |
Part Number |
Price |
|
Notes |
| 01 |
Footbrake lever, chrome |
|
1 |
|
|
35212331590 |
$239.15 |
|
+core |
| 02 |
Pin |
6X12 |
1 |
|
|
07129934961 |
$3.19 |
|
|
| 03 |
Hex bolt |
M6X20-8.8ZNS3 |
1 |
|
|
35211231067 |
$1.54 |
|
|
| 04 |
Hex nut |
M6-8-ZNNIV SI |
1 |
|
|
07119905543 |
$0.38 |
|
|
| 05 |
Bushing |
|
1 |
|
|
35212335330 |
$7.45 |
|
|
| 06 |
O-ring |
12X2 |
2 |
|
|
35212335528 |
$1.32 |
|
|
| 07 |
Washer |
8,4 |
1 |
|
|
35212335498 |
$1.13 |
|
|
| 08 |
Fillister head screw |
M8X40-10.9 ZNS |
1 |
|
|
35212331445 |
$3.52 |
|
|
| 09 |
Retainer spring |
|
1 |
|
|
35212333257 |
$9.35 |
|
|
Notes
- +core = plus core charge (possibility of a return of the old part)
