R 100, /7, /T, CS, RS, RT, S (76-84) R 100 RS Rear wheel swinging arm parts

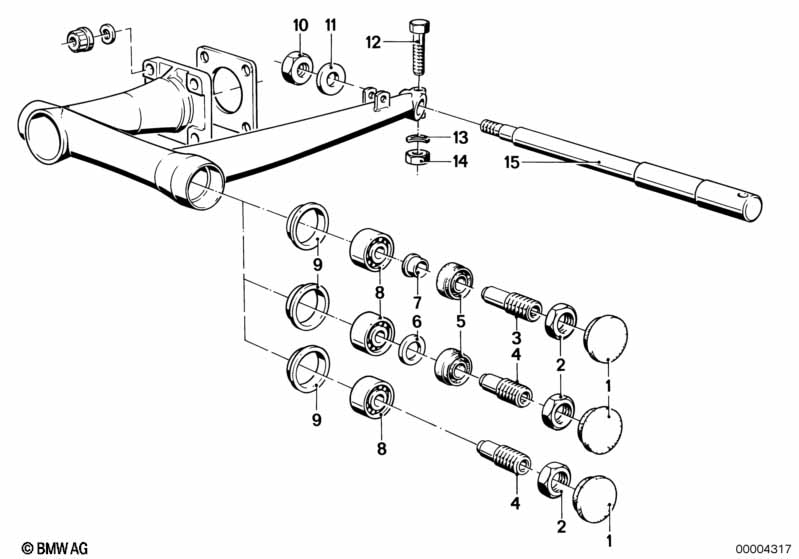

Rear wheel swinging arm parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cap 2 33171230296 $3.71
02 Hex nut 2 33533054174 $8.25
04 Pivot pin L=42,5MM 2 09/1980 33171236955 $44.52
08 Tapered roller bearing 40X17X17 2 01/1981 33171241546 $75.70
09 Cover 1 33171239812 $2.75
10 Hex nut M14X1,5 1 07119901309 $1.65
11 Washer 1 09/1980 33411239504 $6.64
12 Hex bolt M8X35-8.8-ZNS3 1 01/1985 07119904252 $0.82 ENDED
12 Fillister-head screw M8X35-10.9-ZNS3 1 07119906650 $0.87
13 Wave washer 1 07119904115 $0.09
14 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
14 Hex nut M8-8-ZNS3 1 01/1985 07119904032 $0.16
14 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
15 Plug type axle drum brake D=17MM/L=296MM 1 33411230303 $119.95 +core
15 Plug type axle disk brake D=17MM/L=296MM 1 33411235830 $119.95 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
