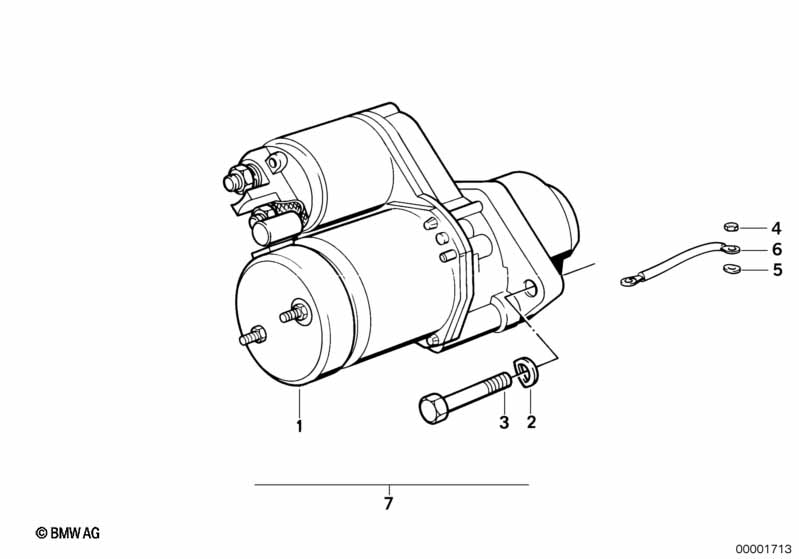

R 100 RS, R 100 RT (87-95) R 100 RT Starter

Starter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Starter 1 12419062425 $413.23 +core
02 Wave washer 2 07119904115 $0.09
03 Hex bolt M8X45 2 07119912506 $0.41 ENDED
03 Hex bolt M8X45-8.8-ZNS3 2 07119902955 $0.62
04 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
04 Hex nut M8-8-ZNS3 1 06/1997 07119904032 $0.16
04 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
05 Spring washer B8 1 07119933096 $0.18
06 Battery cable (plus pole) 1 61121243473 $48.45 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
