R 100 RS, R 100 RT (87-95) R 100 RT Fork slider

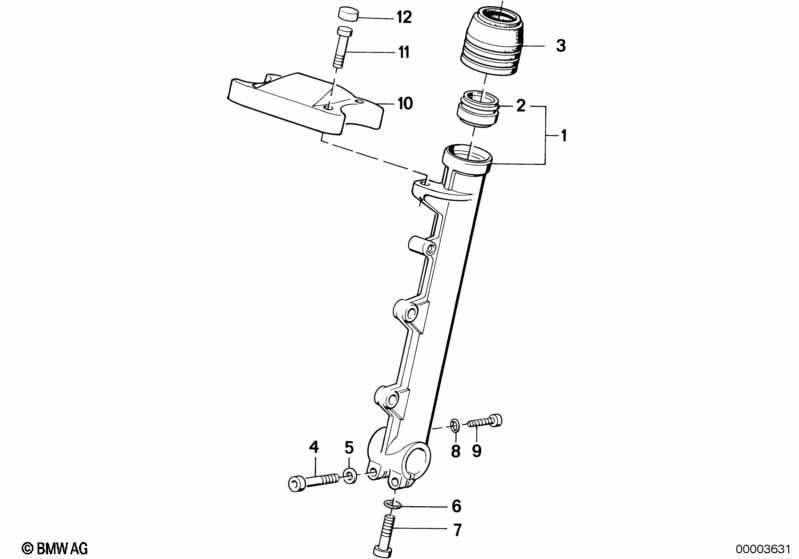

Fork slider
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inner tube, black, left 1 31421457117 $586.04 +core
01 Inner tube, black, right 1 31421457118 $569.05 +core
02 Shaft seal 2 31422310199 $14.79 ENDED, SI 3102188(505)
only in conjunction with
02 Shaft seal 2 31421458341
only in conjunction with
-- Shim 2 31421458474 $2.71
03 Cup 2 31421454392 $27.81
04 Fillister-head screw M8X35 ZNS 4 07119901027 $1.22
05 Washer 8,4 4 07119931697 $0.40
06 Gasket ring A8X11,5-AL 2 07119963041 $0.57
07 Fillister-head screw M8X20 2 07119919705 $1.74
08 Gasket ring A6,5X9,5 2 07119963037 $0.57
09 Hex bolt M6X6 2 07119913408 $2.80
10 Stabilizer SW 1 31421457116 $87.31
11 Fillister head screw M8X25 4 12/1995 36311457803 $2.80 ENDED
11 Oval head screw M8X25-10.9 ZNS3 4 36317709543 $2.80
12 Cap 4 31421457133 $0.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
