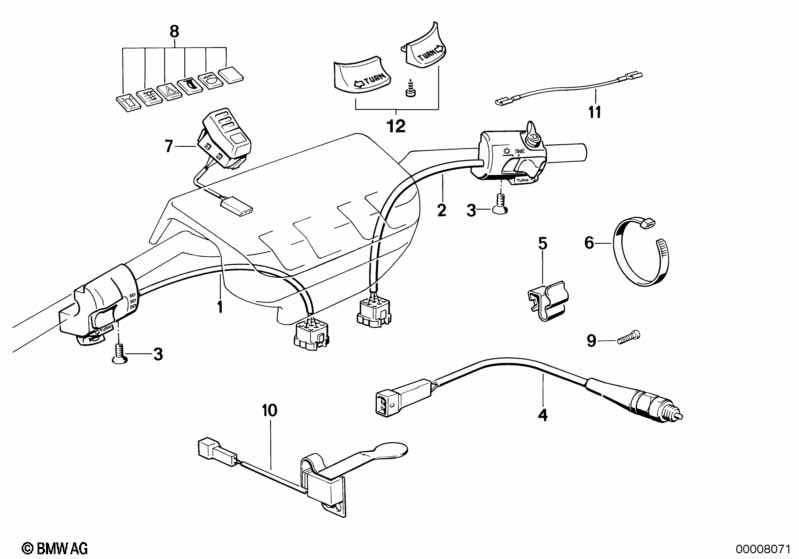

K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Switch

Switch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Combination switch left 1 61311459461 $118.96 ENDED, +core
02 Combination switch right 1 61311459462 $132.92 +core
03 Csk.fillister head srew M4X12 2 07119928426 $0.82
04 Switch 2 61311459569 $25.06 +core
REAR WHEEL BRAKE
04 Switch 1 61311459569 $25.06 +core
THROTTLE HOUSING ASSY
04 Switch 1 61311459569 $25.06 +core
05 Clamp 2 61311459057 $0.36 ENDED
05 Fixing clamp A=4,0 - 4,5MM 2 07147566122 $0.58
06 Cable tie L=200MM/B=3,6MM 2 61131367599 $0.43
07 Hazard warning switch 1 61311459305 $49.10 +core
07 Additional switch X 61311459306 $41.33 +core
07 Switch ABS 1 61311459700 $50.82 +core
For vehicles with
Heated handlebar grips

X519A=Yes
07 Switch, heated handlebar grips/htd seat L=700MM 1 61311459234 $51.46 +core
08 Fog tail lamp symbol X 61311459359 $5.65 +core
08 Symbol handle heatet X 61311459360 $5.65 +core
08 Symbol signalling light X 61311459361 $5.65 +core
08 Symbol horn scale X 61311459362 $5.65 +core
08 Clip without symbol X 61311459363 $1.75 +core
08 Symbol hazzard warning X 61311459367 $5.65 +core
08 Anti block system symbol X 61311459703 $5.65 +core
08 Fog tail lamp symbol X 61312305197 $5.65
09 Fillister-head screw M5X8 1 09/1986 12312322411 $0.58
10 Rear stop light switch 1 09/1986 61311459588 $46.49 +core
11 Tubing 1 61122303023 $39.98 +core
12 Repair kit flasher knob 1 61319062462 $7.16
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
