K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Signal.light f tone-sequenc ctrl system

Signal.light f tone-sequenc ctrl system

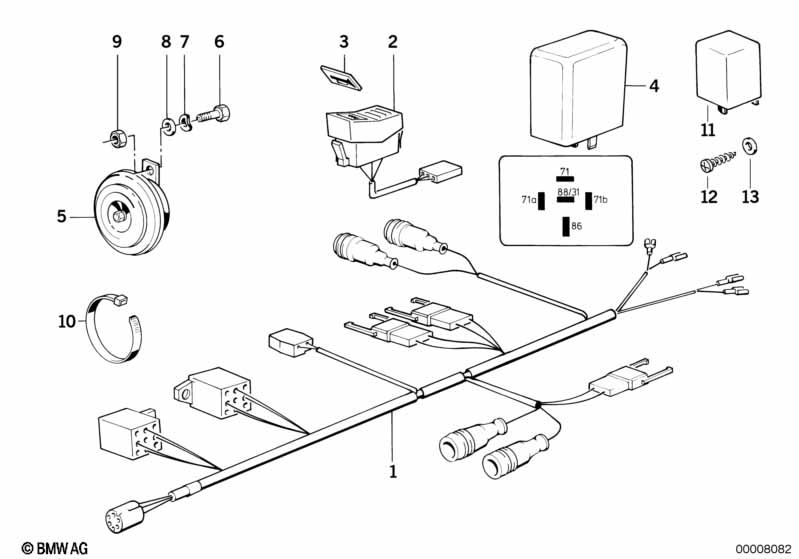

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Official vehicles

=Yes
01 Wiring horn scale officials light loe 1 61121459267
02 Additional switch 1 61311459306 $41.33 +core
03 Symbol horn scale 1 61311459362 $5.65 +core
04 Control unit HELLA 1 61311243709 +core
05 Horn, high pitch 500HZ 1 61331358772 $116.28 ENDED, +core
05 Horn, low pitch 375HZ 1 61331358773 $116.28 ENDED, +core
06 Fillister-head screw M10X20-8.8-ZNS 2 07119901039 $1.04
07 Wave washer B10-ZNS 4 12/1996 07119932122 $0.38 ENDED
07 Wave washer B10-ZNS3 4 07119904463
09 Hex nut M10 2 12/1996 07119922857 $0.75 ENDED
09 Hex nut M10 2 07119907088
10 Cable tie L=200MM/B=3,6MM X 61131367599 $0.43
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
