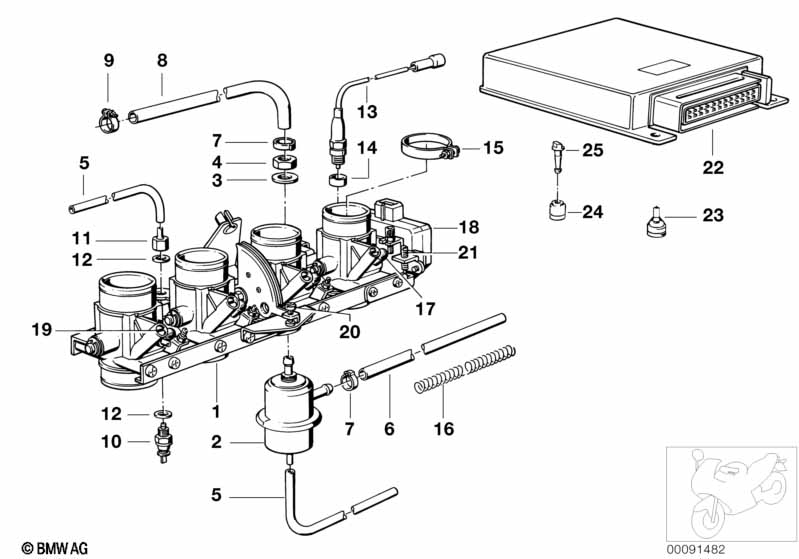

K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Throttle housing assy/control unit

Throttle housing assy/control unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Throttle Housing Assy 1 13541461807 $1017.37 ENDED, +core
only in conjunction with
-- Accelerator bowden cable L=1142MM 1 32731457378 $30.54 +core
02 Pressure regulator 1 13531460451 $143.76 +core
03 Washer 13-140 HV-ZNS 1 10/1991 07119931699 $0.40 ENDED
03 Washer 12-200 HV-ZNS3 1 07119906063
04 Hex nut M12X1,5 1 07119922940 $1.29
05 Vacuum hose black 3,5X1,8 X 11727545323 $14.82
06 Fuel hose 8X13MM X 16121180409 $20.43
07 Hose clamp D=12MM - 13,5MM 2 17121461500 $2.54
08 Hose 1 13311461011 $20.56
09 Hose clamp D=13 1 13311460928 $1.75
10 Pressure switch 1 04/1985 12631459416 $18.23 +core
11 Connector 1 04/1985 13541460872
12 Gasket ring A10X13,5-AL 2 04/1985 07119963073 $0.11
13 Switch 1 61311459569 $25.06 +core
14 Ring 1 08/1990 13541460926 $2.61
15 Hose clamp D=46 4 11611460940 $3.48
16 Spring 1 13541461531 $3.19
17 Protection cap 3 13547694924 $1.20
18 Throttle valve switch 1 13631273265 $128.75 +core
19 Adjusting screw 4 13541461261 $9.92
only in conjunction with
-- Gasket ring 4 13111257819 $2.78
20 Adjusting screw 1 13541461237 $2.06
21 Adjuster 1 13541461238 $1.48
22 Control unit L-jetronic 1 13611460950 $1461.61 +core
For vehicles with
Official vehicles

=Yes
22 Control unit L-jetronic 1 13611461828 $1461.61 +core
23 Bump stop 2 51161459067 $1.93
24 Bump stop 1 51161459068 $2.80
25 Pin 1 51161459069 $3.09
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
