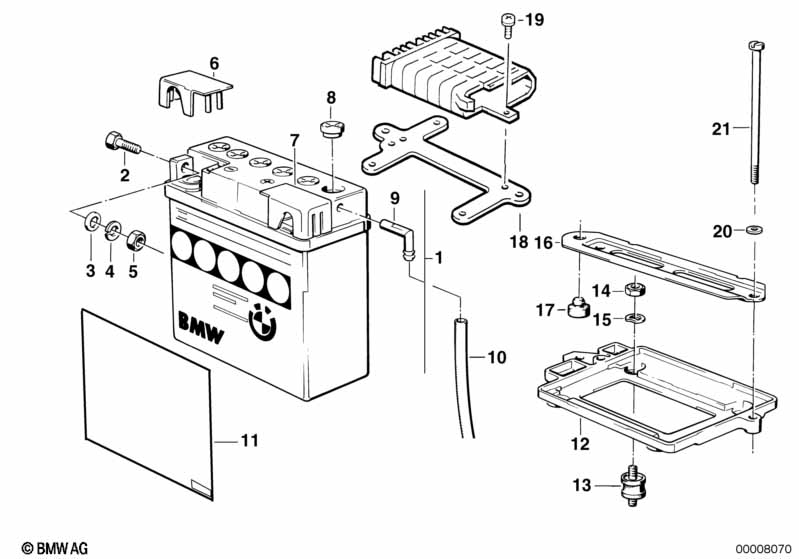

K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Battery
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty battery | 12V 25AH | 1 | 61211459650 | $139.09 | ||||
| 01 | Battery acid parcel (6 bottles) | 25AH-30AH | 1 | 61219056972 | |||||
| 02 | Hex bolt | M6X20 | 2 | 61211459655 | $1.93 | ||||
| 03 | Washer | A6,4 | 2 | 61211459657 | $0.84 | ||||
| 04 | Spring washer | B6 | 2 | 12/1996 | 61211459658 | $0.56 | ENDED | ||
| 04 | Spring washer | B6 | 2 | 61217670327 | $0.55 | ||||
| 05 | Hex nut | M6 | 2 | 61211459656 | $1.98 | ||||
| 06 | Covering cap | - POL | 1 | 61211459098 | $1.93 | ||||
| 07 | Covering cap | + POL | 1 | 61211459099 | $1.93 | ||||
| 08 | Blind plug | 6 | 61211459106 | $2.80 | |||||
| 09 | Hose connector | 1 | 02/1987 | 61211459743 | $1.00 | ||||
| 10 | Hose | 1000 MM | 1 | 61212306299 | $3.24 | ||||
| 12 | Battery hold down | 1 | 61211459055 | $27.94 | |||||
| 13 | Rubber Mounting | 4 | 61211233028 | $13.76 | |||||
| 14 | Self-locking hex nut | M6 | 4 | 07129900191 | $0.38 | ENDED | |||
| 14 | Hex nut | M6-8-ZNS3 | 4 | 07129904876 | $0.16 | ||||
| 14 | Hex nut | M6-8-ZNNIV SI | 4 | 07129905817 | |||||
| 15 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | |||||
| 16 | Chain tensioner | 1 | 61211459044 | $9.61 | |||||
| 17 | Bump stop | 1 | 61211459087 | $2.80 | |||||
| 21 | Screw | M6X178 | 2 | 61211459734 | $5.16 |
Notes
- ENDED = the part has been discontinued (no longer available).
