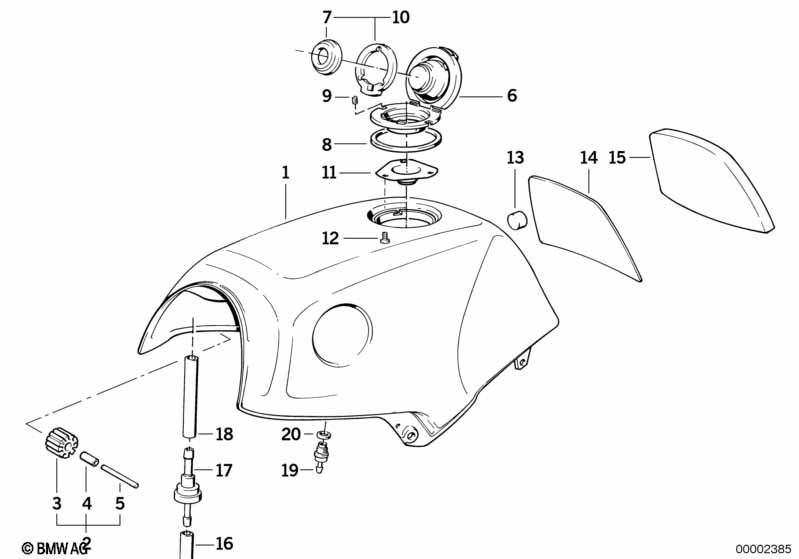

K589 (K100, RS, RT, LT) K 100 LT 87 (0506,0516) Fuel tank

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Fuel tank prime coated		1	05/1985		16111455011	$1504.22		ENDED, +core
06	Filler cap		1			16111453641	$252.65		ENDED, +core
06	Filler cap	KAT	1			16112309402	$148.62		ENDED, +core
08	Gasket ring		1			16111453690	$6.06
09	Countersunk head screw	M4X10	4		12/1996	07119928211	$0.40		ENDED
09	Countersunk head screw	M4X10	4			07119904433
10	Gasket set		1			16119062461	$23.51		ENDED
11	Intermediate plate	KAT	1			16112309404	$33.77		ENDED
12	Self tapping screw	M4X8	3			07119918519	$0.81
14	Plate		1			16111453327	$17.98		ENDED
	For vehicles with Official vehicles	=Yes
15	Plate		1			16112303111	$156.44
19	Valve		1			16121455348	$11.48		+core
20	Gasket ring	A16X20	1			07119963251	$1.15		ENDED
20	Gasket ring	A16X20-AL	1			07119963252	$0.57

Notes

• ENDED = the part has been discontinued (no longer available).
• +core = plus core charge (possibility of a return of the old part)
