K40 (K 1200 S, K 1300 S) K 1300 S (0508,0509) Camshaft, camshaft gear, timing chain

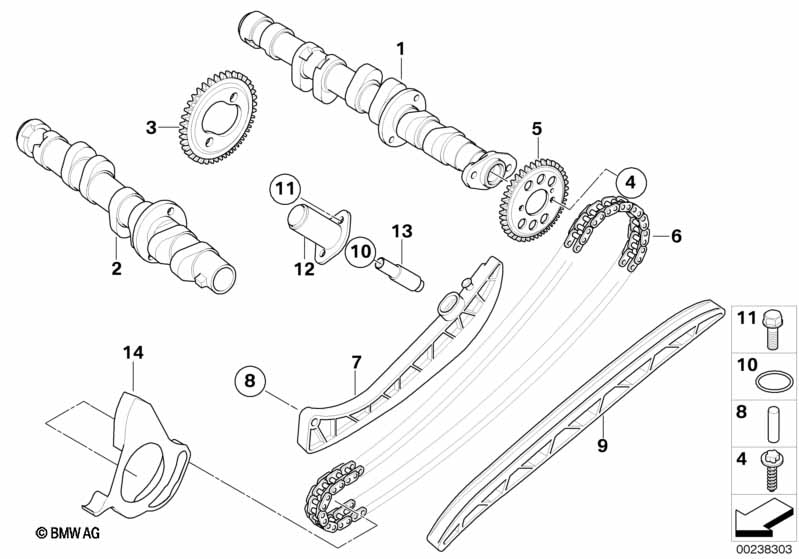

Camshaft, camshaft gear, timing chain
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Camshaft exhaust 256DEG 1 11317726514 +core
02 Inlet camshaft 268DEG 1 11317726511 +core
03 Gear wheel, camshaft 2 11317675490 $124.52
04 ASA-Bolt M7X11,5 6 11317727500
05 Sprocket Z=38 1 11317701209 $99.66 +core
06 Timing chain 1 11317701207 $101.31 +core
07 Chain tensioner 1 11317699888 $30.67
08 Dowel pin 8X32-A-ST 1 07119942528 $2.84
09 Slide rail 1 11317675400 $20.26
10 O-ring set 1 11317705460
11 Torx screw M6X16-ZNNIV SI 2 07129902813 $0.25
12 Oil reservoir 1 11317720098
13 Chain tensioner 1 11317711271 +core
14 Chain guide 1 11318526932
Notes
  • +core = plus core charge (possibility of a return of the old part)
