K589 (K100, RS, RT, LT) K 100 83 (0501,0511) Front wheel brake

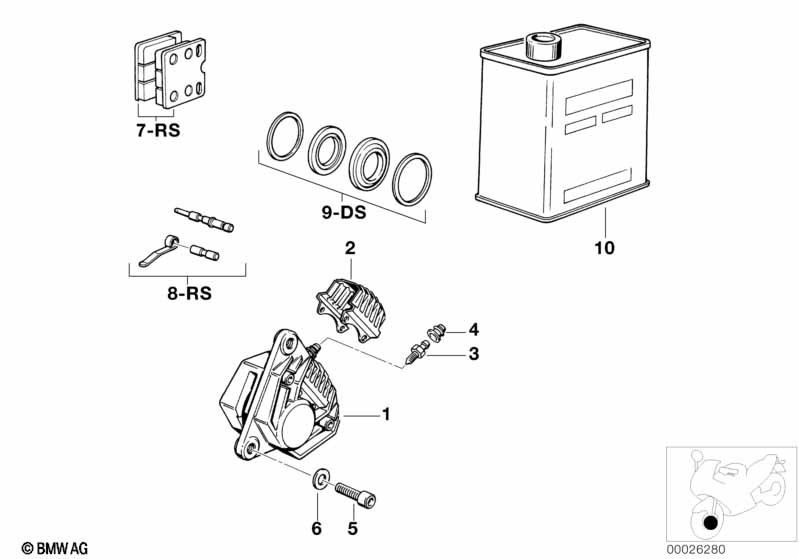

Front wheel brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
CALIPER RIGHT
01 Brake caliper D=38MM 1 09/1988 34111457470 $639.16 ENDED, +core
01 Brake caliper without pad D=38 1 09/1988 34111465276 $433.55 +core
CALIPER LEFT
01 Brake caliper D=38MM 1 09/1988 34111450755 $616.84 ENDED, +core
01 Brake caliper without pad D=38MM 1 09/1988 34117723307 ENDED
02 Covering cap BREMBO 2 34111454120 $5.41
02 Covering cap 20 3254.32 2 34111454653 $6.73
03 Vent screw 2 34211236793 $10.64
04 Dust cap 2 34211236794 $6.09
05 Fillister-head screw M10X30-8.8-ZNS 4 07119901049 $1.30
06 Washer A10,5 4 07119931020 $0.40 ENDED
06 Washer ZNS3 4 12/1996 07119904198 $0.45
06 Washer 10-200 HV-ZNNIV 4 07119904168 $8.35
07 Brake pads kit 2 09/1988 34111454724 $53.71 ENDED, +core
07 Brake pads kit 2 09/1988 34217657025 $53.71 +core
07 Brake pads kit 2 09/1988 34112331175 $63.79
08 Set mounting parts 2 34111454005 $19.60
09 Repair set brake caliper 2 34112310493 $36.25
10 Brake fluid DOT4 LV, low viscosity 1L X 83132445461
10 Brake fluid DOT4 LV, low viscosity 250ML X 83132467961
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
