K589 (K100, RS, RT, LT) K 100 83 (0501,0511) Fluid container rear

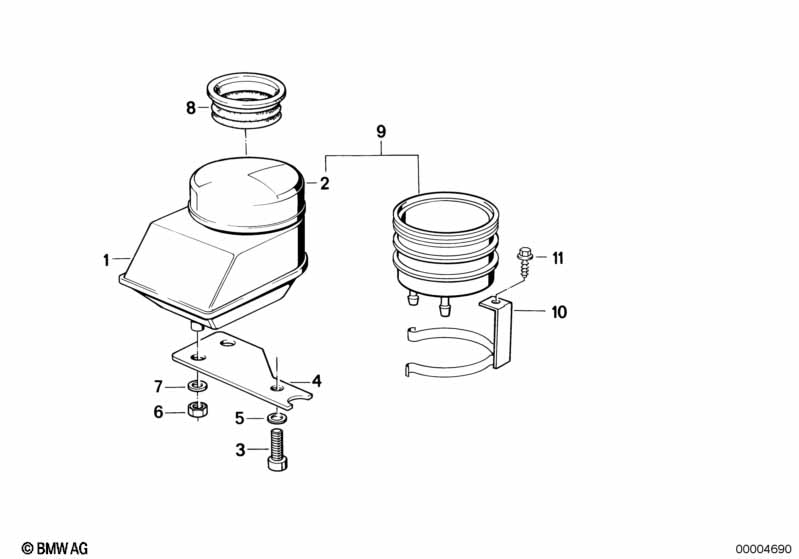

Fluid container rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fluid reservoir, square corners 1 09/1987 34311451863 $25.54
02 Cover 1 09/1987 34311457870 $13.31 ENDED
03 Fillister-head screw M6X16-ZNS 1 09/1987 07119901438 $0.60 ENDED
03 ISA screw M6X16-8.8-ZNNIV 1 09/1987 07129905536 $0.64
04 Holder 1 09/1987 34311451978 $5.08
05 Washer 6,4 1 09/1987 07119931639 $0.24 ENDED
05 Washer 6-200 HV-ZNS3 1 09/1987 07119904606 $0.84
06 Hex nut M5 ZNS 3 2 09/1987 07119964653 $0.38 ENDED
06 Hex nut M5 2 09/1987 07119905710 $2.83
07 Washer 5,3 2 09/1987 07119936416 $0.40 ENDED
07 Washer 5,3-140 HV-ZNS 2 09/1987 07119936439 $0.40
08 Rubber cover 1 34311457603 $13.31
Notes
  • ENDED = the part has been discontinued (no longer available).
