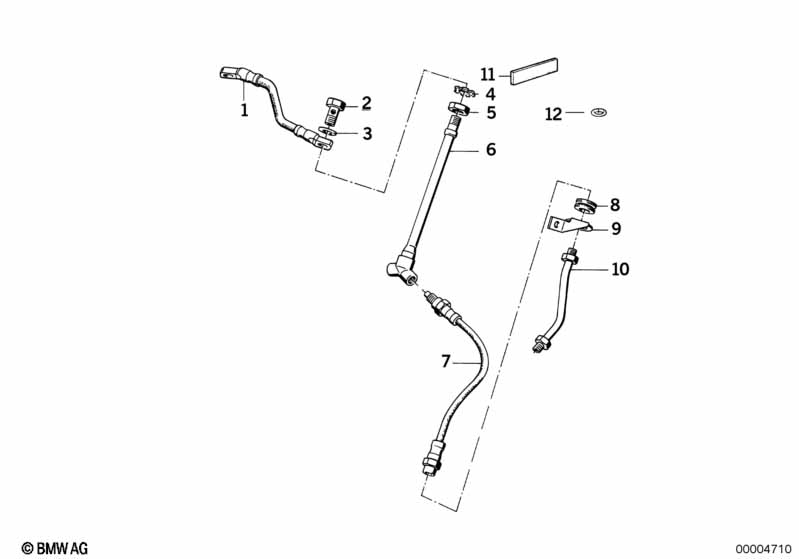

K589 (K100, RS, RT, LT) K 100 83 (0501,0511) Brake pipe, front

Brake pipe, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake hose L=249MM 1 09/1991 34321451571 $44.29 +core
01 Brake hose L=217MM 1 34322310117 $44.29 ENDED
02 Hollow bolt 2 34321242205 $4.47
03 Gasket ring A10X13,5-CU 4 07119963072 $0.11
05 Hex nut M16X1,5 1 34321451766 $1.87
06 Distribution piece 1 34321457298 $307.40
07 Brake hose L=360MM 2 34321457852 $48.09 +core
08 Grommet 2 34321236462 $2.80
09 Hose bracket, left 1 34321450761 $7.08
09 Hose bracket, right 1 34321450762 $7.08
10 Brake pipe left 1 34321450757 $17.39
10 Brake pipe right 1 34321450758 $17.39
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
