K589 (K100, RS, RT, LT) K 100 83 (0501,0511) Disk brake, rear

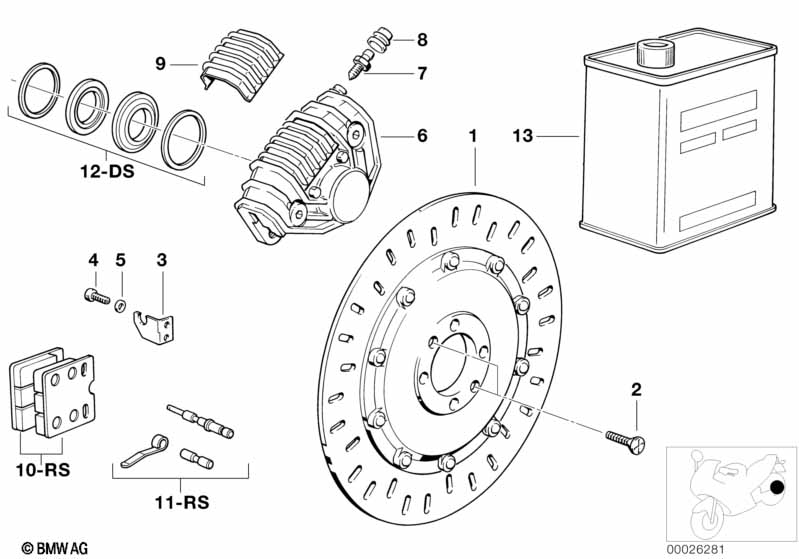

Disk brake, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Anti block system (ABS)

X524A=No
01 Rear brake disk black 1 34212310206 $435.50 +core
02 Countersunk head screw M8X20 TUFLOK 2 34212330021 $2.80
03 Bracket 1 33111451189 $0.52
04 Fillister-head screw M10X25 2 07129905534 $1.50
05 Washer A10,5 1 07119931020 $0.40 ENDED
06 Brake caliper D=38MM 1 12/1996 34511457469 $433.55 ENDED, +core
07 Vent screw 1 34211236793 $10.64
08 Dust cap 1 34211236794 $6.09
09 Covering cap BREMBO 1 34111454120 $5.41
10 Brake pads kit 1 12/1996 34111454724 $53.71 ENDED, +core
11 Set mounting parts 1 34111454005 $19.60
12 Repair set brake caliper 1 34112310493 $36.25
13 Brake fluid DOT4 LV, low viscosity 1L X 83132445461
13 Brake fluid DOT4 LV, low viscosity 250ML X 83132467961
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
