K589 (K100, RS, RT, LT) K 100 RS 83 (0502,0503,0513) Engine Suspension

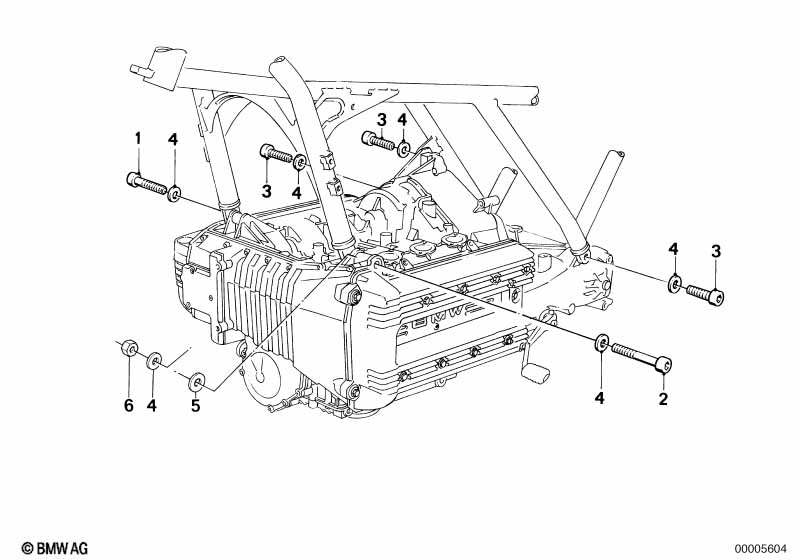

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fillister-head screw M10X60-8.8 1 07119901107 $3.02
02 Fillister-head screw M10X90 1 07/1992 07119901110 $2.16 ENDED
02 Fillister-head screw M10X90-ZNS3 1 07119905509 $2.16
03 Fillister-head screw M10X35 3 12/1996 07119901064 $1.89 ENDED
03 Fillister head screw M10X35-8.8-ZNS3 3 07129904159 $5.48
04 Washer A10,5 5 07119931020 $0.40 ENDED
04 Washer ZNS3 5 12/1996 07119904198 $0.45
04 Washer 10-200 HV-ZNNIV 5 07119904168 $8.35
05 Shim 1,00MM X 46712311547 $3.12
05 Shim 1,25MM X 46712311548 $3.12
05 Shim 1,50MM X 46712311549 $3.12
05 Shim 1,75MM X 46712311550 $3.12
05 Shim 2,00MM X 46712311551 $3.12
05 Shim 2,25MM X 46712311552 $3.12
05 Shim 2,50MM X 46712311553 $3.12
05 Shim 2,75MM X 46712311554 $3.28
05 Shim 3,00MM X 46712311555 $3.28
05 Shim 3,25MM X 46712311556 $3.28
05 Shim 3,50MM X 46712311557 $3.28
05 Shim 3,75MM X 46712311558 $3.28 ENDED
05 Shim 4,00MM X 46712311559 $3.28 ENDED
05 Shim 4,25MM X 46712311560 $3.67 ENDED
05 Shim 4,50MM X 46712311561 $3.62 ENDED
05 Shim 4,75MM X 46712311562 $3.62 ENDED
05 Shim 5,00MM X 46712311563 $3.62 ENDED
05 Shim 5,25MM X 46712311564 $3.62 ENDED
05 Shim 5,50MM X 46712311565 $3.38 ENDED
05 Shim 0,50MM X 46712312160 $3.10
05 Shim 0,75MM X 46712312161 $3.10
06 Self-locking hex nut M10 2 07129964676 $0.75 ENDED
06 Hex nut M10 2 07129904878 $1.09 ENDED
06 Hex nut M10-10-ZNS3 2 07129904879 $0.47
Notes
  • ENDED = the part has been discontinued (no longer available).
