K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Cylinder Head

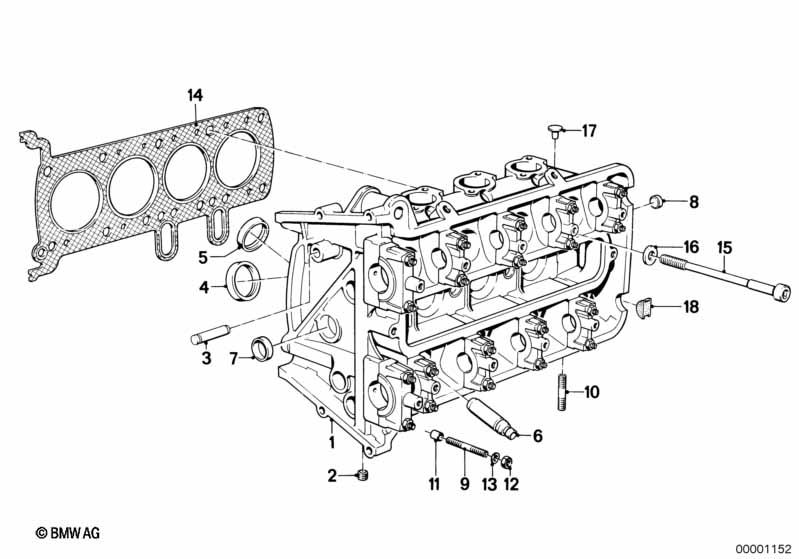

Cylinder Head
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder Head 1 11121460586 $1672.60 +core
03 Bolt 1 11121464134
04 Valve Seat Ring Intake 4 11121460285 $9.66
04 Valve Seat Ring Intake +0,2 4 11121460299 $9.66
05 Valve seat insert exhaust lead-free 4 11121460803 $16.43
05 Valve seat insert exhaust lead-free +0,2 4 11121460804 $16.43
06 Valve Guide 8 11121460118 $12.08
only in conjunction with
06 Valve Guide +0,2 8 11121460431 $12.08
only in conjunction with
-- Lower spring plate +0,2 8 11341460132 $1.94
08 Cover lid D=14MM 2 11121464408 $0.86
09 Stud bolt M6X50 X 10/1991 07129908106 $0.60 ENDED
09 Stud bolt M6X50 X 07129902312
10 Stud bolt M8X40-ZN 8 07129908133 $0.30 ENDED
10 Stud bolt M8X40 8 07129903964
11 Dowel 8,5X11,5MM 4 11121460580 $2.80
12 Hex nut M6-8-ZNNIV SI X 07119905543 $0.38
13 Wave washer B6 X 07119932099 $0.38
14 Cylinder Head Gasket Asbestos-Free 1,82MM 1 11121464461 $90.46 +core
15 Screw M10X135 X 11121464069 $20.46
16 Washer 3,5 ZNS X 11121336872 $5.61
16 Washer 10,5X20X3 X 11121464026 $0.96
17 Blind plug 2 11111460828 $0.87 ENDED
18 Plug 2 11121460368 $2.80
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
