K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Mudguard front

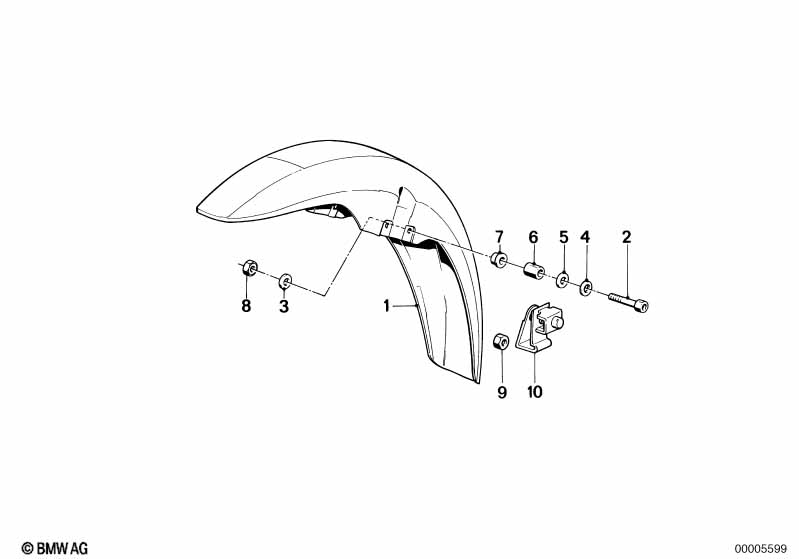

Mudguard front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mudguard front prime coated 1 46611450668 $253.07
02 Fillister-head screw M6X45-8.8 ZNS 4 46612322495 $1.19
03 Washer A6,4-ZNNIV SI 4 07119904202
04 Rubber washer 4 08/1984 46621230798 $2.23
05 Washer 4 08/1984 52118009560 $0.58 ENDED
05 Washer A6,4-200HV-ZNS3 4 08/1984 07119903791 $0.11
06 Bush 4 63141459169 $0.84
07 Washer 4 08/1984 46611453025 $1.94
08 Self-locking hex nut M6 4 08/1984 07129900191 $0.38 ENDED
08 Hex nut M6-8-ZNS3 4 08/1984 07129904876 $0.16
08 Hex nut M6-8-ZNNIV SI 4 08/1984 07129905817
09 Square nut M6 4 08/1984 46612322491 $0.54 ENDED
09 Square nut M6 4 08/1984 07119904050 $0.11
10 Holder 4 08/1984 46611453977 $1.97
Notes
  • ENDED = the part has been discontinued (no longer available).
