K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Engine spoiler

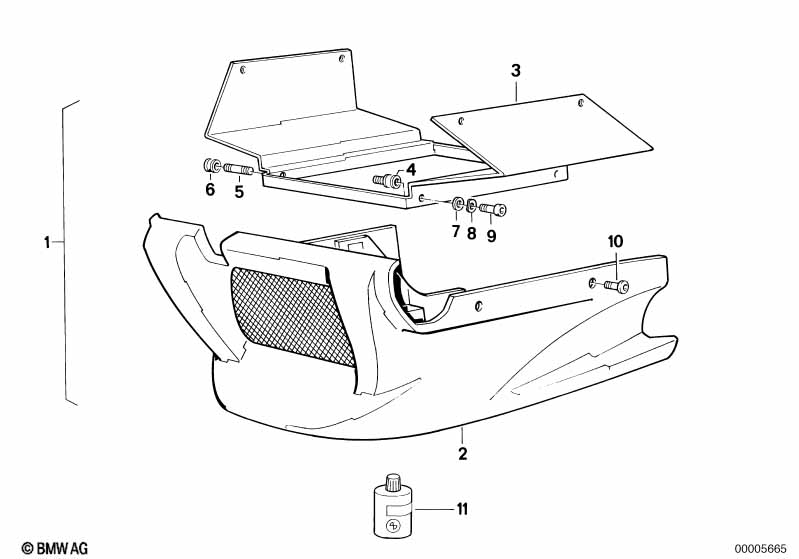

Engine spoiler
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supplementary set motor spoiler 1 46632315209 ENDED
02 Motor spoiler prime coated 1 46632315210
03 Holder 1 46632303626 $255.04
04 Rubber Mounting 2 71602303838 $15.49
05 Threaded bolt M8X32 2 71602303845 $2.80
06 Grommet 2 71602303840 $2.80 ENDED
07 Washer A8,4-ZNS 2 07119931019 $0.40
08 Wave washer B8 2 10/1991 07119932095 $0.09 ENDED
08 Wave washer 2 07119904115 $0.09
09 Fillister-head screw M8X10 2 07119918849 $1.74
10 Fillister head screw M8X16 4 71602303846 $2.64 ENDED
11 Loctite thread lock, medium LOCTITE 243 1 10/1991 07589056031 ENDED, SI 115894668
11 Thread lock, medium-strength 10ML 1 83192210339
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
