K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) Trim panel-side pocket/knee padding

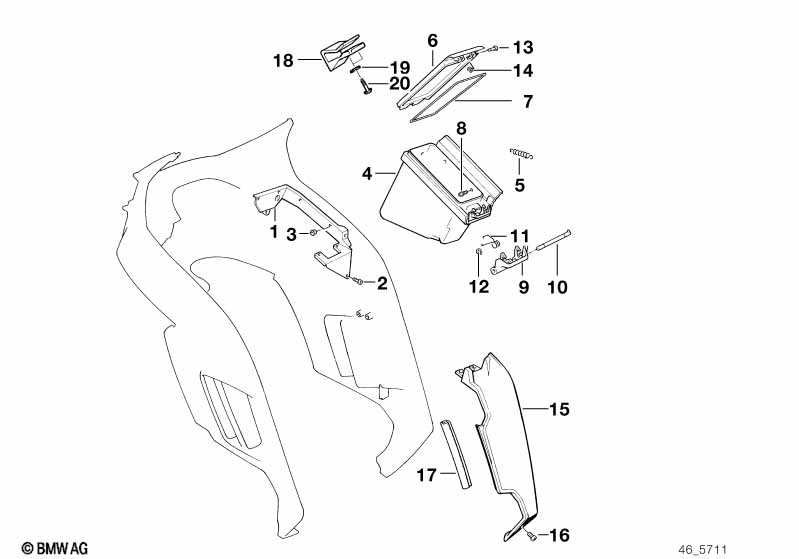

Trim panel-side pocket/knee padding
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bracket left 1 46631453487 $24.08
01 Bracket right 1 46631453488 $24.08
02 Fillister head screw M5X8-Z3 X 07119906822 $0.18
03 Expanding nut X 52531451393 $0.75
04 Saddel bag left Saddel bag left 1 46631453177 $114.57
04 Saddel bag right 1 46631453178 $114.57 +core
04 Left saddel bag/radio 1 65142303247 $116.74 +core
05 Tension spring 2 46631453517 $4.50
06 Cover left 1 46631453175 $43.26 +core
06 Cover right 1 46631453176 $43.26 +core
06 Right cover/radio 1 46632303408 $51.68
06 Left cover/radio 1 65142303231 $25.11 +core
07 Gasket 2 46631453909 $3.81
08 Fillister head self-tapping screw ST4,2X19 ZN-SW 4 07119901179 $0.25 ENDED
08 Sheet metal screw ST4,2X19-U2-C-H 4 07119904176 $0.25
08 Fillister head self-tapping screw ST4,2X16-Z2 4 07119907948 $0.18
09 Flap 2 46631453293 $4.64
10 Axle 2 46631453295 $3.76
11 Spring 2 46631453458 $2.87
12 Clamping plate D=6MM 4 07129934319 $1.33
13 Pin 4 46631453457 $2.99
14 Clamping plate 4 MM 4 07129934320 $1.13
15 Knee padding left 1 07/1988 46631453171 $218.90
15 Knee padding right 1 07/1988 46631453172 $218.90
16 Fillister head self-tapping screw ST4,2X13-Z1 2 07119907943 $0.14 ENDED
16 Sheet metal screw 4,2X13 2 07119904310 $0.38
17 Gasket 340MM 2 46631453258 $13.62 ENDED
18 Clamp 1 46632303396 $15.28
19 Wave washer B4 2 07119932033 $0.09
20 Fillister head screw M4X6 2 07119907657 $0.13
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
