K589 (K1, K 100 RS) K 100 RS (0523,0533) Cast rim, front

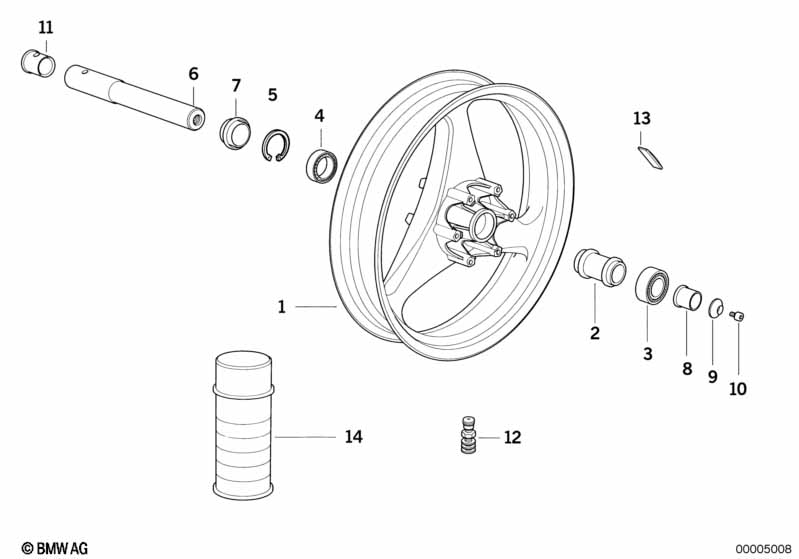

Cast rim, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cast iron rim silver front 3,50X17 1 36312311272 $927.47 +core
02 Pipe 1 36311458419 $12.44
03 Grooved ball bearing 25X47X12 1 36311450967
04 Grooved ball bearing 25X52X20,6 1 36312310973
05 Lock Ring 52X2 1 36312310971 $3.57
06 Quick-release axle 1 36311458417 $129.64 +core
07 Bush 1 36311450821 $5.70
08 Bush 1 36311458454 $10.08
09 Shim 1 36311450834 $11.65
10 Fillister-head screw M10X20-8.8-ZNS 1 07119901039 $1.04
11 Cap 1 36311451468 $2.03
12 Valve D=15MM 1 36317653064 $5.02
13 Balance weight 5G X 09/1993 36311451958 $3.15 ENDED
13 Balance weight, zinc, w. adhesive foil 5G X 36317720635
13 Balance weight 10G X 09/1993 36311451959 $3.23 ENDED
13 Balance weight, zinc, w. adhesive foil 10G X 36317720636
13 Balance weight 20G X 09/1993 36311451960 $3.65 ENDED
13 Balance weight, zinc, w. adhesive foil 20G X 36317720638
13 Balance weight 30 G X 09/1993 36311451961 $4.06 ENDED
13 Balance weight, zinc, w. adhesive foil 30G X 36317720640
13 Balance weight 15 G X 09/1993 36311454310 $3.36 ENDED
13 Balance weight, zinc, w. adhesive foil 15G X 36317720637
13 Balance weight 25 G X 09/1993 36311454311 $3.80 ENDED
13 Balance weight, zinc, w. adhesive foil 25G X 36317720639
14 Spray silber 131 X 51911240868 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
