K589 (K 1100 RS, K 1100 LT) K 1100 LT (0526, 0536) Locks

Locks

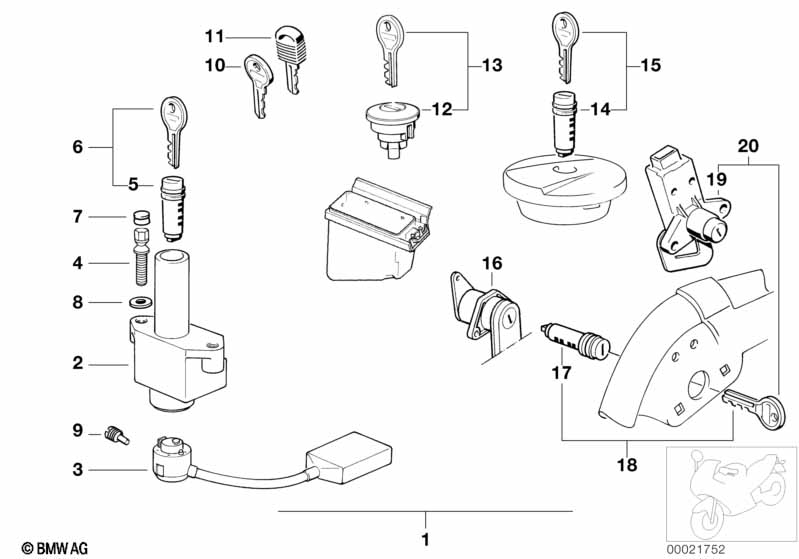

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Set of locks 1 51252309415 $326.30 ENDED, +core
02 Housing 1 51252323004 $207.86 +core
03 Ignition/light switch 1 61322305292 $100.82 ENDED, +core
04 Lock screw M8X31-MK-ZNS3 2 51257711811 $2.90
05 Steering lock (with key code) 1 51252308669 $74.00 +core
06 Lock cylinder with key 1 51252308668 $38.10 +core
07 Cap 2 31421457133 $0.87
08 Washer 8,4 2 07119931697 $0.40
09 Stud bolt M3X5 1 51259062821 $0.90
10 Standard key (code) X 51251233898 $15.57
11 Ignition key, folding (code) X 51251453645 $43.86
12 Catch (code) 2 51251453822 $76.96
13 Lock 2 51251453823 $59.60 ENDED
14 Lock (with key code) 1 51251455108
15 Lock cylinder with key 1 51251455109 $30.00
16 Housing 1 08/1993 51252308125 $30.05
17 Lock (with key code) 1 08/1993 51251455108
only applies to
-- Housing X 08/1993 51252308125 $30.05
18 Lock cylinder with key 1 08/1993 51251455109 $30.00
only applies to
-- Housing X 08/1993 51252308125 $30.05
19 Dual seat lock with code 1 51251453655 $76.96
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
