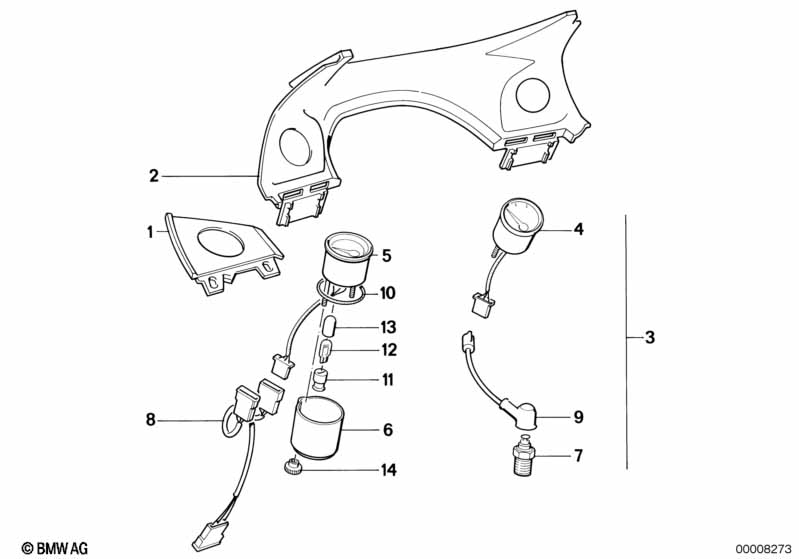

K589 (K1, K 100 RS) K 100 RS (0523,0533) Additional instruments

Additional instruments
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering left 1 46631453937 $92.12
01 Covering right 1 46631453938 $94.67
03 Installing set additional instruments 1 62131459963 $427.14 ENDED, +core
03 Installing set additional instruments 1 62132325549 ENDED, +core
CONSISTING OF
04 Temperature gauge 1 62132305069 $200.00 ENDED, +core
05 Petrol gauge 1 62132305068 $212.64 ENDED, +core
06 Cover 2 62131459609 $3.28 +core
07 Coolant temperature sensor 1 62162325348 $27.96 +core
08 Wiring additional instruments 1 61121459488 $109.12 +core
09 Wiring additional instruments 1 61121459511 $13.93 +core
10 Gasket ring 2 62131243100 $2.48 ENDED
11 Bulb socket 2 62131459259 $4.39
12 Bulb 12V 2W 2 07119978279 $1.79
13 Cap 2 62131459260 $2.48 ENDED
14 Knurled nut 4 62131459257 $1.09 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
