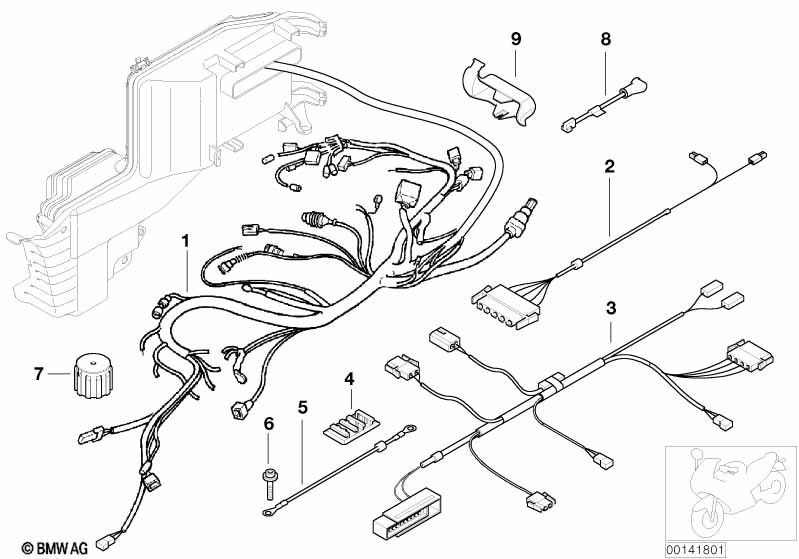

K41 (K 1200 GT, K 1200 RS) K 1200 RS 01 (0547,0557) Wrng harness,chassis,tail part,heat.grip

Wrng harness,chassis,tail part,heat.grip
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Official vehicle package

X369A=Yes
01 Wiring harness, officials utility 1 02/2005 61117688195 +core
For vehicles with
Heated handlebar grips
and
ABS integral discontinued

X519A=No

X646A=Yes
01 Wiring harness, chassis with electrobox 1 10/2002 61117684534 +core
For vehicles with
Heated handlebar grips
and
ABS integral discontinued

X519A=Yes

X646A=Yes
01 Wiring harness, chassis with electrobox 1 08/2003 61117684534 +core
For vehicles with
Heated handlebar grips
and
Cruise control

X519A=Yes

X538A=Yes
01 Wiring harness, chassis with electrobox 1 10/2002 61117684533 $2062.52 +core
For vehicles with
Heated handlebar grips
and
Cruise control

X519A=No

X538A=Yes
01 Wiring harness, chassis with electrobox 1 08/2003 61117684533 $2062.52 +core
For vehicles with
Official vehicle package
or
Cruise control
or
ABS integral discontinued

X369A=No

X538A=No

X646A=No
01 Wiring harness, chassis with electrobox 1 10/2002 61117684532 +core
02 Tail part wiring harness 1 61112350656 $146.69 +core
only in conjunction with
-- Rubber grommet 1 61311354400 $2.80
For vehicles with
Priority warning light, blue
or
Priority warning light, red

X466A=Yes

X467A=Yes
02 Tail part wiring harness 1 61117685060 +core
only in conjunction with
-- Rubber grommet 1 61311354400 $2.80
04 Bracket, plug connection black 1 61131378987 $0.87
05 Ground cable L=220MM 1 61112305751 $34.80
06 Fillister head with washer M6X16-Z1-8.8 1 07119902316 $2.84
07 Cap for diagnosis plug 1 61132306793 $11.34
08 Wiring additional instruments 1 61121459511 $13.93 +core
09 Cover f registration plate light 1 46622309892 $7.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
