K41 (K 1200 GT, K 1200 RS) K 1200 GT 01 (0548,0558) External gearshift parts/Shift lever

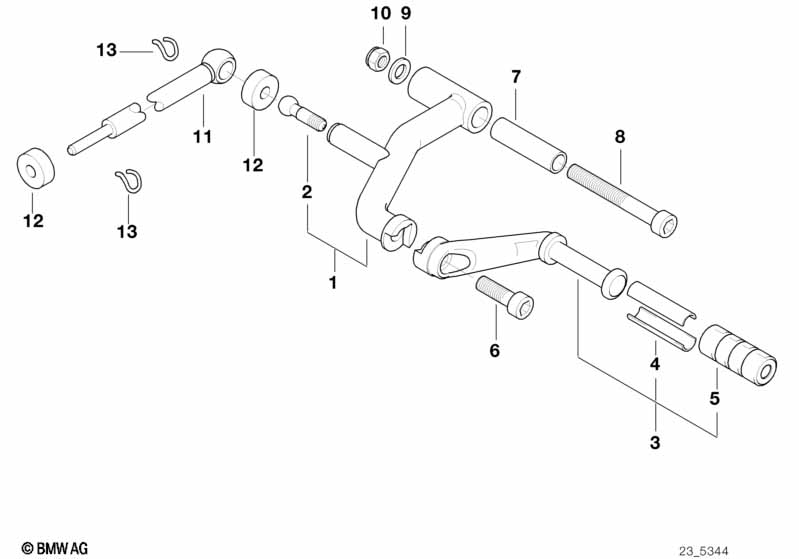

External gearshift parts/Shift lever
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Basic lever 1 23417654517 $174.34
02 Ball pin 1 07119901736 $4.67
03 Foot lever 1 23417654519 $125.15 +core
04 Bearing shell 2 23418524155
05 Pad for foot-operated shift lever 1 23417680761 $7.30
06 Fillister-head screw M6X16-8.8-ZNS3 1 07119906392
07 Bushing 1 23412332118 $21.86
08 Fillister-head screw M6X60-8.8-ZNS3 1 07119904509 $2.37
09 Washer 6,4 1 07119931696 $0.40
10 Hex nut M6-8-ZNNIV SI 1 07129905817
11 Selector rod L=53MM 1 23417654521 $47.64
12 Plastic bush 2 23417650149 $1.20
13 Safety clip S10 2 07119987611 $0.25
Notes
  • +core = plus core charge (possibility of a return of the old part)
