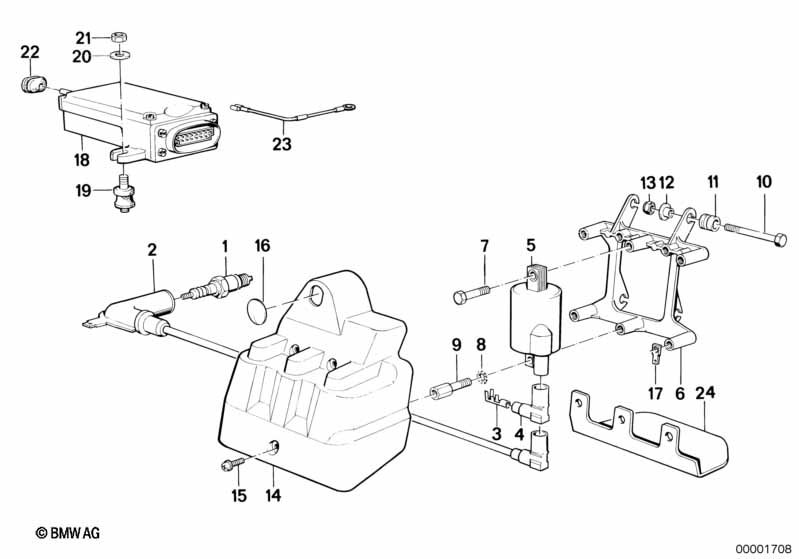

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Ignition system

Ignition system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Spark plug X5DC 3 12121460800 $12.18 ENDED, +core
01 Spark plug X5DC 3 12129062217 +core
02 Ignition wire 1 1 12121459874 $105.96 +core
02 Ignition wire 2 1 12121459875 $105.96 +core
02 Ignition wire 3 1 12121459876 $112.04 +core
03 Circular connector 3 09/1989 12121363327 $0.73
03 Circular connector 3 09/1989 12121705656 $1.73 +core
04 Suppressing socket 3 09/1989 12121459754 ENDED
04 Suppressing socket 1000-OHM 3 09/1989 12121289837 $9.25 ENDED, +core
04 Suppressing socket 3 09/1989 12121289840
05 Ignition coil 3 12131459059 $207.22 ENDED, +core
06 Bracket,ignition coil 1 12131459042 $21.29
07 Hex bolt M6X22 3 07119913020 $0.40 ENDED
08 Tooth washer A6,4 6 07119936133 $0.38
09 Spacer 2 12131459562
10 Hex bolt M6X85 2 07119912364 $7.49
11 Rubber grommet 4 31421235615 $2.03
12 Bush 8 12131459053 $0.84
13 Self-locking hex nut M6 2 07129922705 $0.27
15 Fillister head screw M5X12-Z1 3 07119907582 $1.22
17 Flat-type connector 1 12131459563 ENDED
For vehicles with
Engine speed governor
or
National version Switzerland

X327A=No

Y731A=No
18 Control unit 1 12141459021 $1370.20 ENDED, +core
For vehicles with
Engine speed governor
and
Switzerland version

X327A=Yes

=Yes
18 Control unit 1 12141459967 +core
20 Washer 6,4 2 05/1990 07119931044 $0.58 ENDED
20 Washer A6,4-ZNS 2 12/1996 07119931018 $0.40 ENDED
20 Washer A6,4-ZNNIV SI 2 07119904202
21 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
22 Rubber grommet 1 12141459514 $2.80
24 Cover 1 12131459755 $6.79
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
