K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Absorber

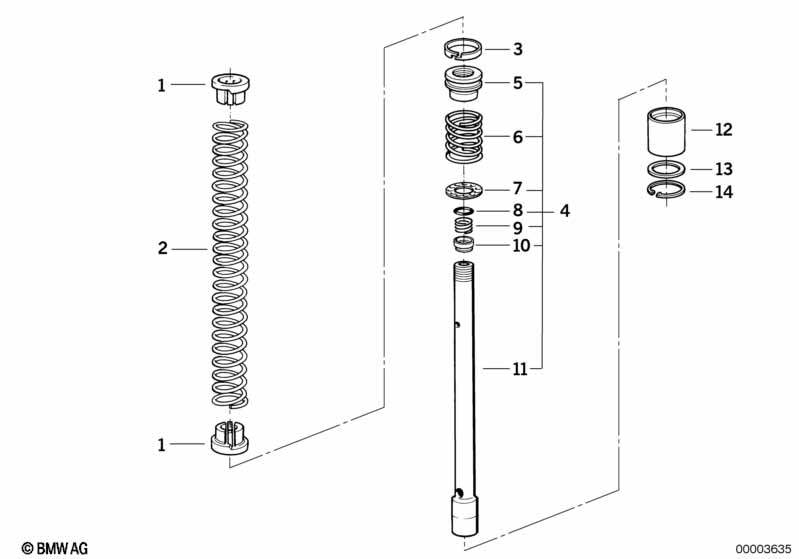

Absorber
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i FG* 09/85
01 Spring retainer 8 08/1991 31421450539 $2.23
02 Compression spring 4 08/1991 31421457904 $28.19
03 Guide ring 2 08/1991 31421450517 $8.74
04 Absorber 2 08/1991 31421454615 $85.60
05 Piston 2 08/1991 31421450515 $9.75
06 Compression spring 2 08/1991 31421451701 $2.52
07 Valve washer 2 08/1991 31421450535 $9.24
08 Gasket ring 18X3,5 4 08/1991 31421452011 $1.32
09 Coil spring 2 08/1991 31421232057 $1.10
10 Valve 2 08/1991 31421454620 $5.76
11 Pipe 2 08/1991 31421454616 $85.60 ENDED
12 Valve housing 2 08/1991 31421454621 $12.24
13 Shim 25X36X1,6 2 08/1991 07119932661 $4.07
13 Shim 25X36X1,7 2 08/1991 07119932706 $4.07
13 Shim 25X36X1,8 2 08/1991 07119932707 $4.07
13 Shim 25X36X1,9 2 08/1991 07119932708 $12.52
13 Shim 25X36X2,0 2 08/1991 07119932709 $4.07
14 Lock Ring 36X1,5 2 08/1991 07119934681 $0.75
Notes
  • ENDED = the part has been discontinued (no longer available).
