K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Fork brace, bottom/top

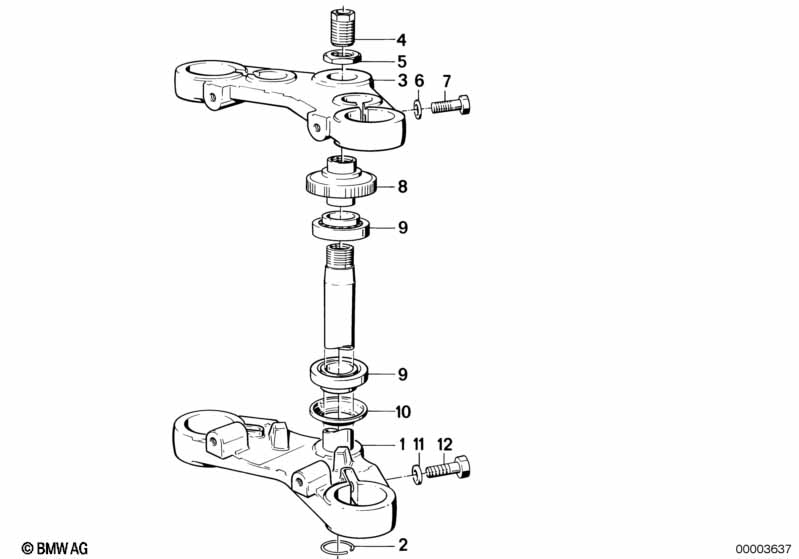

Fork brace, bottom/top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i FG* K75c 0 113 805 / K75c USA 0 130 55
3
01 Lower fork cross brace 1 08/1991 31422332050 $473.47 ENDED, +core
02 Snap ring A28 1 08/1991 07119933533 $1.09
03 Upper fork cross brace 1 08/1991 31422332052 $344.16 +core
04 Pipe 1 08/1991 31421457225 $13.00
05 Nut 1 08/1991 31421457226 $5.84
06 Washer 8,4 2 08/1991 07119931697 $0.40
06 Shim, black 8,4 2 08/1991 61337653745 $1.13
07 Fillister-head screw M8X50 2 08/1991 07119901034 $1.42
07 Pan-head machine screw, black M8X50 2 08/1991 31422312861 $3.33 ENDED
08 Knirled nut 1 08/1991 31421457222 $67.99
09 Tapered roller bearing 28X52X16 2 08/1991 07119985070 $55.54 ENDED, +core
09 Tapered roller bearing 28X52X16 2 08/1991 31427663941 $68.65 +core
10 Ring 2 08/1991 31421234509 $3.03
11 Washer 10,5 2 08/1991 07119931698 $0.40 ENDED
11 Washer 10-200HV-ZNNIV 2 08/1991 07119907114
11 Shim, black 10,5 2 08/1991 31422312850 $0.84
12 Fillister-head screw M10X50 2 08/1991 07119901106 $1.89 ENDED
12 Torx bolt M10X50-ZNS3 2 08/1991 07129904984 $2.05
12 Fillister-head screw M10X50 2 08/1991 07119919722 $3.02 ENDED
only applies to
-- Lower fork cross brace X 08/1991 31421457220 $315.38 ENDED
12 Pan-head machine screw, black M10X45 2 08/1991 31422312843 $3.02
only applies to
-- Lower fork cross brace X 08/1991 31422332050 $473.47 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
