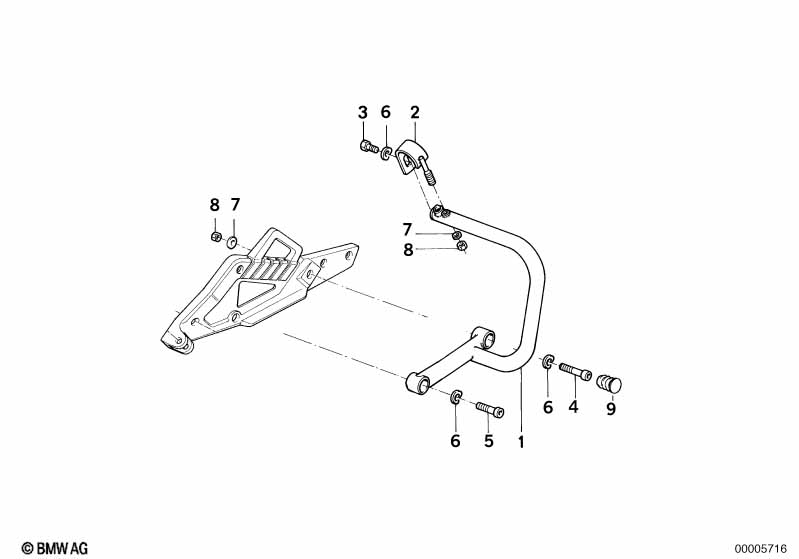

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Mounting parts f rear protection bar

Mounting parts f rear protection bar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Official vehicles

=Yes
01 Protection bar rear left CR 1 46712303087 $265.90
01 Protection bar rear left 1 46712303147 +core
01 Protection bar rear right CR 1 46712303088 $265.90
01 Protection bar rear right 1 46712303148 +core
02 Clamp 2 46712300458 $21.29
04 Fillister-head screw M8X30-8.8-ZNS 2 07119901025 $0.47
05 Fillister-head screw M8X50 2 07119901034 $1.42
06 Wave washer 6 07119904115 $0.09
07 Washer A8,4-ZNS 4 07119931019 $0.40
08 Self-locking hex nut M8-8-ZNS 4 07129964675 $0.56 ENDED
09 Cap 4 46521236522 $3.26
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
