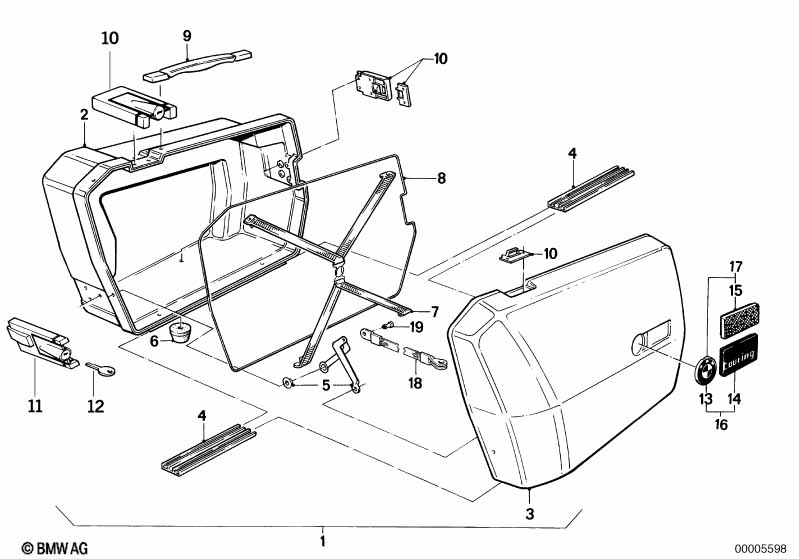

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Integral case

Integral case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Integral case left 1 02/1988 46542303671 ENDED
01 Integral case right 1 02/1988 46542303672 ENDED
02 Housing bottom left 1 46542300033 ENDED
02 Housing bottom right 1 46542300034 ENDED
03 Cover left 1 46542300035 $158.34 ENDED, +core
03 Cover right 1 46542300036 $158.34 ENDED, +core
04 Hinge 4 46542300039 $6.65
05 Hinge left 1 46542300055 ENDED
05 Hinge right 1 46542300056 ENDED
06 Pad 2 46542300044 $8.31
07 Rubber band 4 46542300043 $19.26
08 Gasket 5X1560MM 2 46542300042 $7.21
09 Handle 2 46542300013 $22.19
10 Lock 4 02/1988 46542300088 $47.62
10 Catch (code) (CODE) 4 02/1988 46542300089 ENDED
10 Case catch 4 02/1988 46542303640 $36.84
11 Lock 2 02/1988 46542300041 $47.62
11 Catch (code) 2 02/1988 46542300048 ENDED
11 Case suspension catch 2 02/1988 46542303652 $36.84
12 Standard key (code) X 02/1988 46542300006 $5.87 ENDED
13 Badge 2 46542300045 $8.98
14 Emblem TOURING 2 46542300046 $6.65
15 Rear reflector yellow 2 46542300134 $8.98
For vehicles with
Switzerland version

=Yes
15 Rear reflector red 2 12/1996 46542300047 $8.98 ENDED
15 Rear reflector red 2 63148529372
16 Installing set side marking light TOURING 2 46549056968 ENDED
17 Installing set side marking light GELB 2 46549056970 ENDED
For vehicles with
Switzerland version

=Yes
17 Installing set side marking light ROT 2 46549056969 ENDED
18 Holding strap L=180MM 2 46542300441 $12.95
19 Pin 2 51161828956 $0.48
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
