K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Integral case single parts

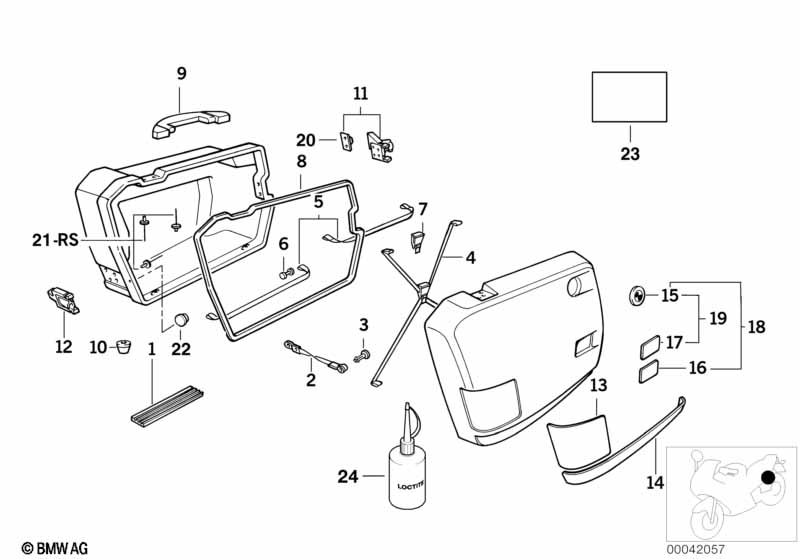

Integral case single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hinge 4 46542300039 $6.65
02 Holding strap L=180MM 2 46542300441 $12.95
03 Pin 2 51161828956 $0.48
04 Rubber band 335 MM 4 46542315754 $14.44
05 Rubber band 230MM 4 46542315753 $10.25 ENDED
06 Axle X 46542315755 $1.45
07 Hook 4 46542315756 $3.52
08 Gasket left 1 46542316391 $64.90 SI 462793632
08 Gasket right 1 46542316392 $64.90 SI 462793632
09 Handle 2 46542315073 $22.19
10 Pad 2 46542300044 $8.31
11 Case catch 4 46542303640 $36.84
12 Case suspension catch 2 46542303652 $36.84
13 Impact protection LINKS 1 46542315055 $76.88 +core
13 Impact protection RECHTS 1 46542315056 $76.88 +core
14 Impact protection LINKS 1 46542315057 $76.88 +core
14 Impact protection RECHTS 1 46542315058 $76.88 +core
15 Badge 2 46542300045 $8.98
16 Emblem TOURING 2 46542300046 $6.65
17 Rear reflector yellow 2 46542300134 $8.98
For vehicles with
Switzerland version

=Yes
17 Rear reflector red 2 12/1996 46542300047 $8.98 ENDED
17 Rear reflector red 2 63148529372
18 Installing set side marking light TOURING 2 46549056968 ENDED
19 Installing set side marking light GELB 2 46549056970 ENDED
For vehicles with
Switzerland version

=Yes
19 Installing set side marking light ROT 2 46549056969 ENDED
20 Hook 4 46542303642 $12.80
21 Set of cover rivets X 46542316689 $3.00 ENDED
21 Set of bottom part rivets X 46542316690 $6.60
22 Push-button inner part 2 46542316434 $2.07
24 Glue, tube LOCTITE 401/3G X 71607650761 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
  • +core = plus core charge (possibility of a return of the old part)
