K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Clutch

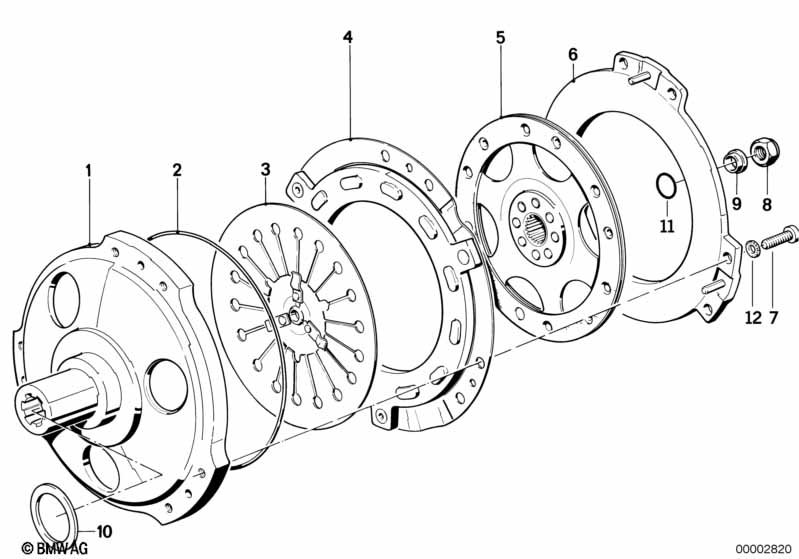

Clutch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Clutch housing ELBE 1 21211454169 $503.99 ENDED, +core
02 Ring D=3MM 1 21211242358 $4.38
03 Diaphragm spring 1 21211454784 $87.65 +core
04 Pressure plate 1 21211457458 $118.98 +core
05 Clutch plate 1 21211464796 $174.62 +core
06 Housing cover 1 21211457280 $177.70 +core
07 Screw 6 21211454417 $2.15
08 Hex nut M20X1,5 1 11211460673
09 Compression ring 1 11211460696 $6.03
11 O-ring 19X4 1 11211460467
12 Washer A7,4 6 21211242377 $0.81
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
