K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) 5-speed transmission - gearshift

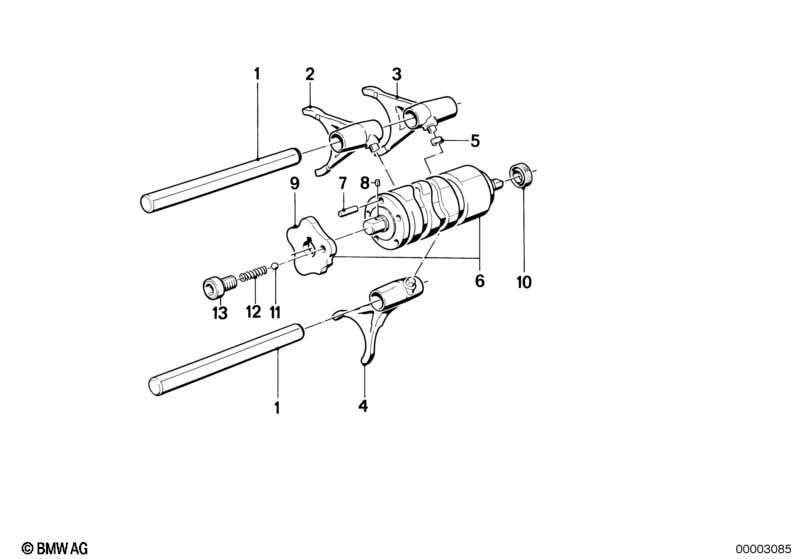

5-speed transmission - gearshift
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Axle 2 23311451113 $37.71 +core
02 Shifting fork 1st and 2nd gear 1 23311451115 $277.87 ENDED, +core
03 Shifting fork 5st gear 1 23311451117 $297.89 +core
04 Shifting fork 3rd and 4th gear 1 23311451116 $291.19 +core
05 Roll pin 3 23311451114 $7.00 +core
06 Shifting roll 1 23311451100 $433.49 ENDED, +core
07 Roll pin B4X15,8 5 07119986744 $1.58
08 Roll pin 3X6 1 07119943211 $1.19
09 Step plate 1 23311451104 $10.51
10 Shaft seal 10X18X6 1 12/1996 23121451157 $14.34 ENDED
10 Shaft seal 10X18X6 1 12/1996 23122332884 $12.84 ENDED, +core
10 Shaft seal 10X18X6 1 23122330141
11 Ball 6MM III 1 07119986270 $0.37
12 Coil spring 1 23311451118 $2.96
13 Fillister-head screw 1 23311451119 $3.02
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
