K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Signalling light

Signalling light

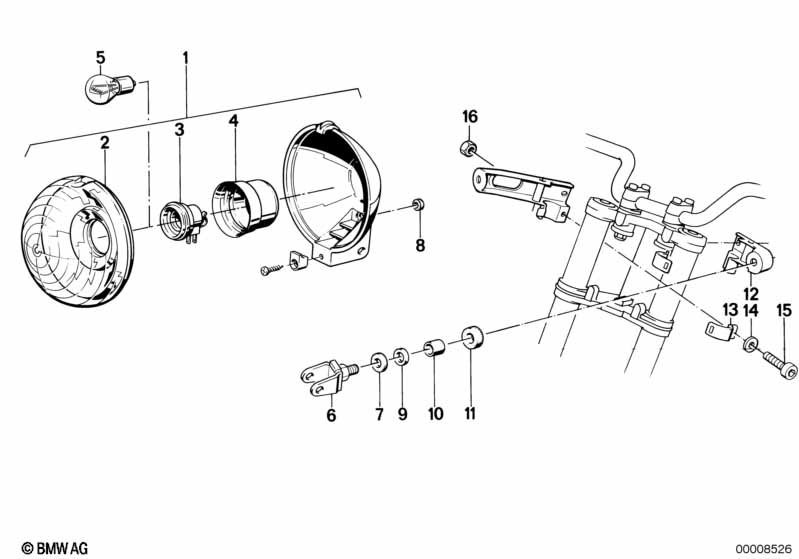

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Official vehicles

=Yes
01 Signalling light,blue ULO 2 63171244342 +core
01 Signalling light,red ULO 2 63171244343 ENDED, +core
02 Lens blue ULO 2 63171244345 +core
02 Lens red ULO 2 63171244346 $97.79 ENDED, +core
03 Bulb socket ULO 2 63171244348 $20.81
04 Protection cap ULO 2 63171244349 ENDED
05 Bulb 12V 35W 2 07119978055 $10.04 ENDED
06 Bow ULO 2 63171244351
07 Rubber washer 2 61311353795
08 Grommet 2 61131244360 $4.60 ENDED
09 Washer A13 2 12/1996 07119931021 $0.58 ENDED
09 Washer A13/HV-ZNS 2 07119901766 $0.30
10 Bush 2 08/1990 46632300372 $5.96
11 Grommet 2 08/1990 46632300375 $1.39
12 Bracket left 1 08/1990 46632300113 $90.41 ENDED
12 Bracket right 1 08/1990 46632300114 $90.41
13 Clamp 2 08/1990 46632300135 $2.99
14 Washer 6,4 2 08/1990 07119931044 $0.58 ENDED
14 Washer A6,4-ZNS 2 08/1990 07119931018 $0.40 ENDED
14 Washer A6,4-ZNNIV SI 2 08/1990 07119904202
15 Fillister-head screw M6X16-ZNS 2 08/1990 07119901438 $0.60 ENDED
16 Self-locking hex nut M6 2 08/1990 07129922705 $0.27
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
