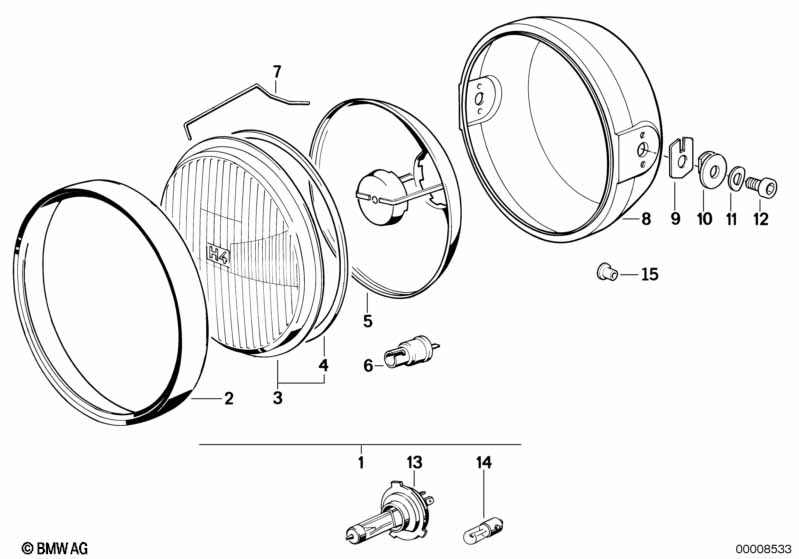

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Headlight

Headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Headlamp schwarz 1 63121459481 $357.26
For vehicles with
National version Great Britain

Y736A=Yes
01 Headlight left asymetric SW 1 63121459482 +core
02 Supporting ring 1 63121356402 $204.71
03 Installing set lamp lens 1 63121358147 $58.79 +core
For vehicles with
National version Great Britain

Y736A=Yes
03 Installing set lamp lens 1 63121358148 $63.62
04 Gasket 1 63121356403 $13.31
05 Reflector 1 63121355396 $204.71 +core
For vehicles with
National version Great Britain

Y736A=Yes
05 Reflector 1 63121357919 +core
06 Bulb socket 1 62148680130 $3.25
07 Clip 6 63121357468 $4.22
08 Headlamp housing CHROM 1 63121459815 $259.70 ENDED, +core
08 Headlamp housing CHROM 2 63127659003 $259.70 +core
only in conjunction with
-- Rubber washer 1 63121358129 $1.74
09 Shield 2 62211459478 $2.29
10 Rubber washer 2 62211459479 $1.74 ENDED
11 Wave washer 2 07119904115 $0.09
12 Fillister-head screw M8X16-8.8-ZNS3 2 07119904101 $0.29
13 Bulb H4 1 63121354619 $13.63
14 Bulb 12V 4W 1 07509063576 $1.58
For vehicles with
National version france

Y741A=Yes
14 Bulb yellow H4 1 63121356105 $35.10
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
