K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Priority vehicle light mounting parts

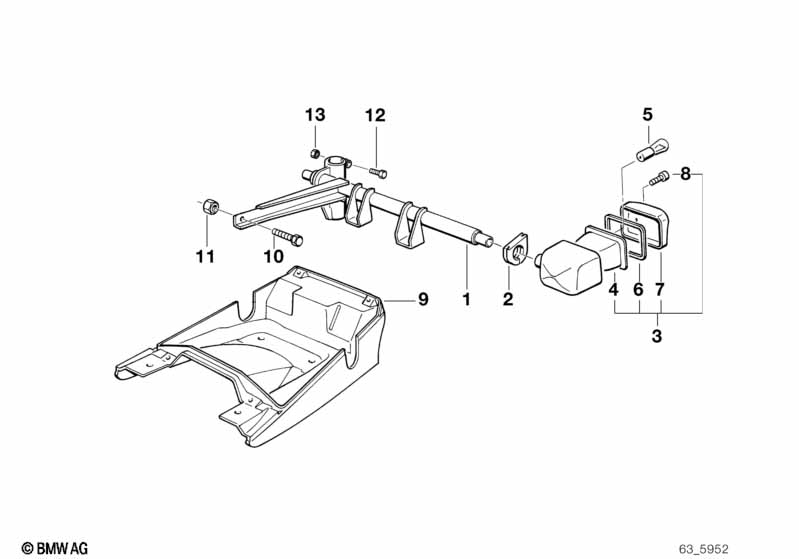

Priority vehicle light mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Official vehicles

=Yes
01 Holder 1 65612300290 ENDED
02 Grommet 2 65612300312 $2.80
03 Turn indicator OLSA 2 63231243442 $28.96 +core
04 Reflector OLSA 2 63231243443 $18.05 ENDED, +core
05 Longlife bulb 12V 21W 2 12/1996 63216926920 $2.38 ENDED
05 Longlife bulb P21W/12V/21W 2 63217160790 $2.38
05 Bulb P21W/12V/21W 2 63217160789 $1.96
06 Gasket OLSA 2 63231243446 $3.06 ENDED
07 Lens OLSA 2 63231243445 $7.75
08 Fillister head screw M3,5X25 2 07119907643 $3.20 ENDED
09 Tail part lower SCHWARZ MATT 1 52532303127
10 Hex bolt M6X16-8.8 ZN 1 07119913466 $0.18 ENDED
10 Hex bolt M6X16-8.8-ZNS3 1 07119904357 $0.36
11 Self-locking hex nut M6 1 07129900191 $0.38 ENDED
11 Hex nut M6-8-ZNS3 1 07129904876 $0.16
11 Hex nut M6-8-ZNNIV SI 1 07129905817
13 Hex nut M5 ZNS 3 2 07119964653 $0.38 ENDED
13 Hex nut M5 2 07119905710 $2.83
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
