K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Bottom air cleaner housing/air cleaner

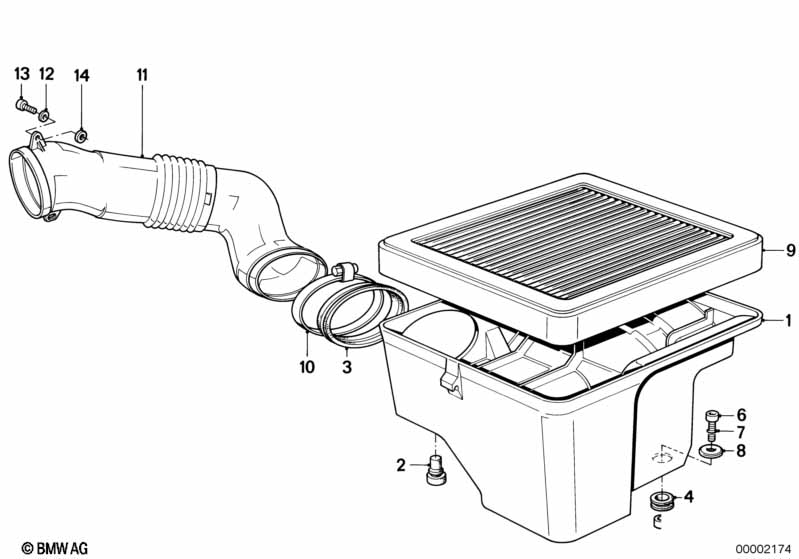

Bottom air cleaner housing/air cleaner
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air cleaner housing bottom 1 13721460339 $18.02 +core
02 Bump stop 3 13721460894 $0.87
03 Gasket 1 13721460754 $3.33
04 Rubber grommet 2 13721460448 $1.39
05 Bush 2 31421232241 $8.95 ENDED
06 Fillister-head screw M8X30 2 12/1996 07119919643 $0.82 ENDED
06 ISA screw M8X30-8.8-ZNS3 2 07129904067 $2.43
07 Ring 2 46711451942 $0.58
08 Washer 4 11421338494 $1.68
09 Air filter element 1 13721460337 $52.25
10 Hose clamp D=78 1 06/1978 13311460942 $3.18 ENDED
10 Hose clamp L71-78 1 07129952129 $1.48
11 Intake manifold 1 13721460524 $44.29
12 Washer 5,3 2 07119936416 $0.40 ENDED
12 Washer 5,3-140 HV-ZNS 2 07119936439 $0.40
13 Hex bolt M5X10 2 07119913218 $0.12
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
