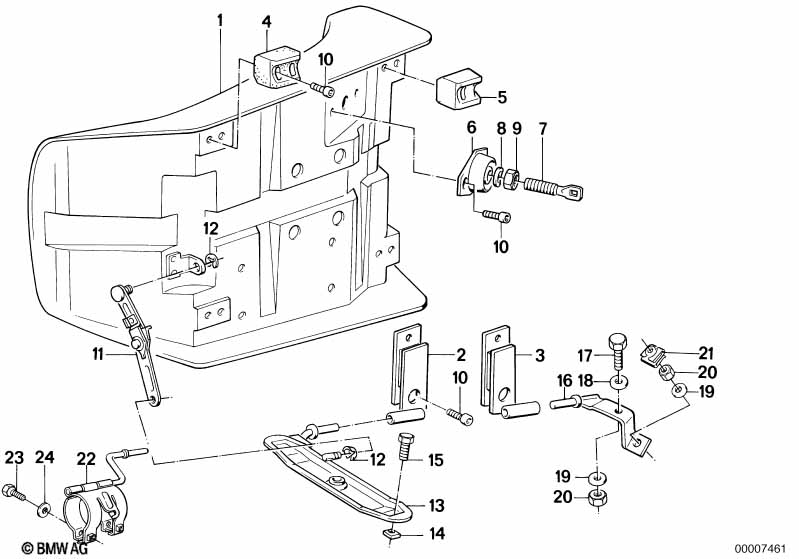

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Bench seat, officials utility

Bench seat, officials utility
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Official vehicles

=Yes
01 Single seat 1 52532300250 +core
01 Seat cover vinyl schwarz 1 52532300252 ENDED
02 Hinge 1 52532300340 $131.51
03 Hinge 1 52532300346 $131.51
04 Bump stop 2 52531451207 $21.64
05 Bump stop 2 52532300347 $23.16
06 Rubber Mounting 1 52531451209 $15.95
07 Catch 1 52531451212 $11.21
08 Wave washer 1 07119904115 $0.09
09 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
09 Hex nut M8-8-ZNS3 1 12/1996 07119904032 $0.16
09 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
10 Fillister head with washer M6X12-Z3 X 07119919886 $0.47
11 Support 1 52531451650 $41.04
12 Circlip 5,0 1 12/1996 07119932832 $0.09 ENDED
12 Circlip 5-ZNS3 1 07119904660 $0.38
12 Lock Ring D6,0 2 07129934318 $0.75
16 Bracket rear 1 52532300336 $10.93
17 Hex bolt M6X16-8.8 ZN 1 07119913466 $0.18 ENDED
17 Hex bolt M6X16-8.8-ZNS3 1 07119904357 $0.36
18 Washer 6,4 1 05/1990 07119931044 $0.58 ENDED
18 Washer A6,4-ZNS 1 12/1996 07119931018 $0.40 ENDED
18 Washer A6,4-ZNNIV SI 1 07119904202
19 Spring washer B6 1 07119933082 $0.09
20 Hex nut M6-8-ZNNIV SI 1 07119905543 $0.38
21 Nut holder M6 1 52532303110 $1.55
22 Clamp 1 52532303103 $44.96
23 Fillister-head screw M6X16-ZNS 2 07119901438 $0.60 ENDED
23 ISA screw M6X16-8.8-ZNNIV 2 07129905536 $0.64
24 Wave washer B6-ZNS3 2 07119904496 $1.78 ENDED
24 Wave washer B6 2 07119932099 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
