K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Engine Block Mounting Parts

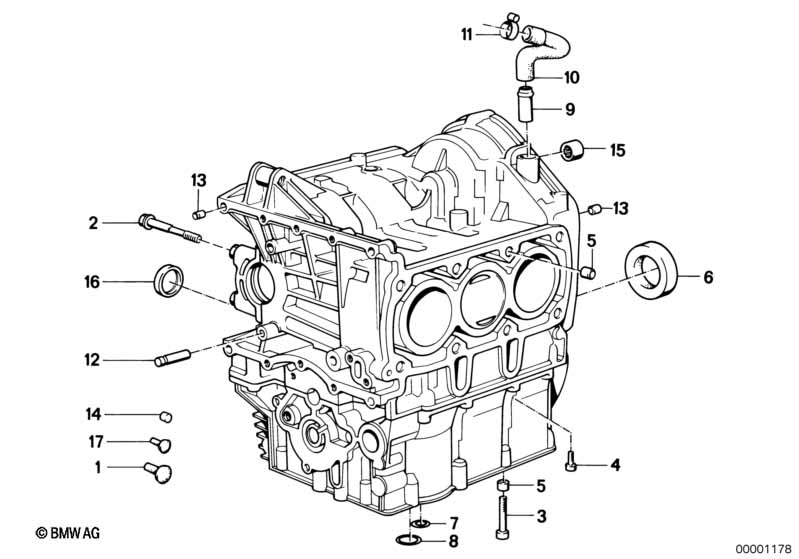

Engine Block Mounting Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Plug 1 11111460399 $0.87
02 Hexagon screw with flange M10X85-10.9-PHR X 11111460007 $3.02
03 Fillister-head screw M8X50 4 12/1996 07119918655 $2.58 ENDED
03 Fillister-head screw M8X50-8.8-ZNS3 4 07119904436
04 Fillister-head screw M6X25 X 11141460678 $0.87
05 Dowel D=12,5MM 4 11111280594 $1.67
05 Dowel D=12,5MM 4 11121726241 $1.62
06 Shaft seal 50X80X10 1 11117666186 $33.85 +core
07 O-ring 15X2,5 1 11111460391 $2.67
08 O-ring 27,3X2,4 1 11111460392 $1.94
09 Vent pipe 1 11111460283 $9.51 ENDED
10 Vent hose 1 11151460480 $23.11
11 Hose clamp D=19 2 11151460935 $3.48
12 Bolt 2 11111460854 $8.86
13 Dowel 4 11121250717 $1.87 ENDED
13 Dowel D=8,5X9MM 4 11121726242 $1.07
14 Blind plug 3 01/1999 11111460284 $2.44
14 Blind plug D=10MM 3 02/1999 11117653656 $5.34
15 Needle sleeve 16X22X16 1 11111460360 $6.69
16 Oil-level check 1 12/1996 11117710474 $38.77 ENDED, +core
16 Oil-level check 1 11118527546 ENDED, +core
16 Oil-level check 1 11118523906 +core
17 Blind plug 1 11111460828 $0.87 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
