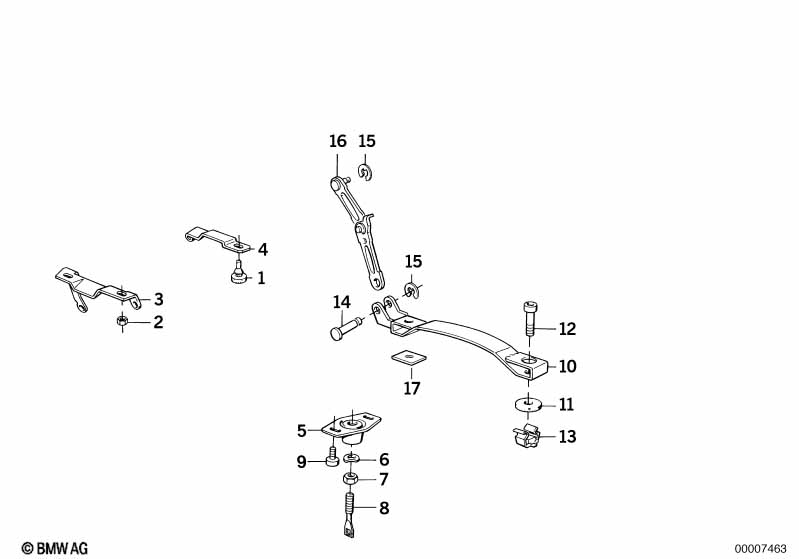

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Mounting parts for bench seat

Mounting parts for bench seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rubber support D=18MM 9 52531230319 $2.58
02 Cage nut M6 5 07129926512 $0.75
03 Hinge 1 52531453364 $6.96
04 Hinge 1 52531455122 $18.88
05 Rubber Mounting 1 52531451209 $15.95
06 Wave washer 1 07119904115 $0.09
07 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
08 Catch 1 52531451212 $11.21
09 Fillister head with washer M6X16 5 46512311713 $1.19
10 Bow 1 52531451213 $19.96 +core
12 Fillister-head screw M6X25 2 07119919532 $0.60
13 Cage nut M6 2 07129926512 $0.75
14 Pin 1 52531450691 $2.20
15 Lock Ring D6,0 4 07129934318 $0.75
16 Support 1 52531451650 $41.04
17 Wedge 1 62111459242 $3.71
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
