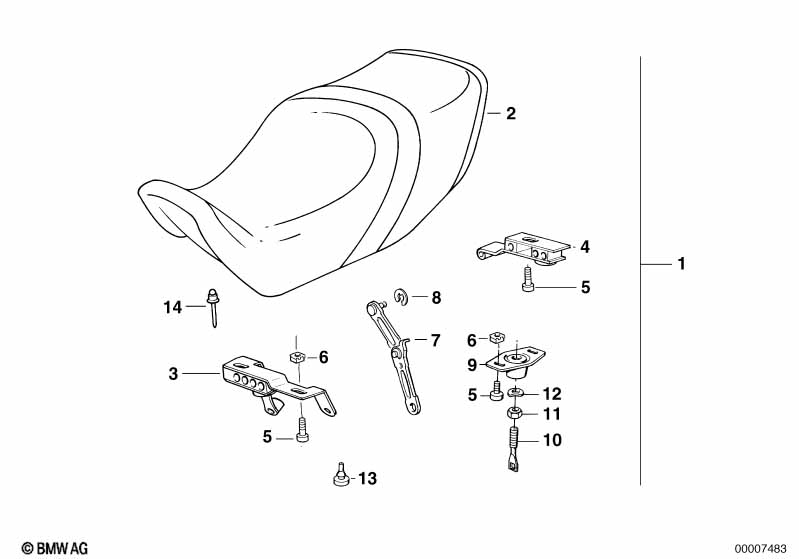

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Saddle dual seat

Saddle dual seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Saddle dual seat KOENIGSBLAU 1 52532325325 ENDED, +core
01 Saddle dual seat SCHWARZ/800MM 1 52532324469 $697.98 +core
only in conjunction with
-- Bracket, control unit 1 61351459782 $35.46
02 Seat cover vinyl KOENIGSBLAU 1 52532325335 ENDED
02 Seat cover vinyl schwarz 1 07/1994 52532324471 $149.56 ENDED
03 Hinge 1 52532307568 $46.29
04 Hinge 1 52532307572 $50.00
05 Fillister head with washer M6X16 5 46512311713 $1.19
06 Cage nut M6 5 07129926512 $0.75
07 Support 1 52531451650 $41.04
08 Lock Ring D6,0 2 07129934318 $0.75
09 Rubber Mounting 1 52531451209 $15.95
10 Catch 1 52531451212 $11.21
11 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
12 Wave washer 1 07119904115 $0.09
13 Bump stop 9 52532307579 $5.80
14 Rivet 4,8-4A X 07129948781 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
