K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Windshield/Mounting parts

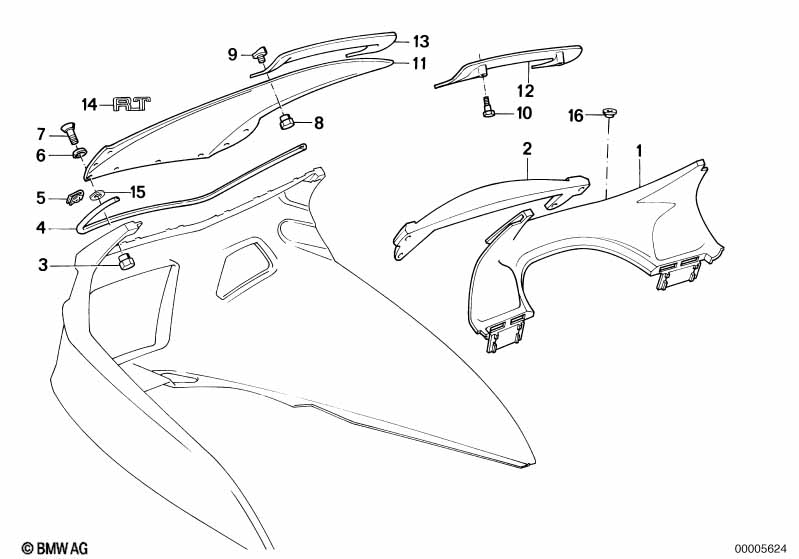

Windshield/Mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering center 1 46631453173 $99.30
01 Cover center f loudspeaker 1 46632303230 $92.12
02 Panel 1 46631453986 $214.79
03 Cap nut 2 46631453960 $4.48
04 Gasket 1 46631453507 $6.66
05 Body nut M5 6 61131372033 $1.37
06 Clamping 8 46631455255 $1.39
07 Csk.fillister head srew M5X16 2 07119928488 $0.40 ENDED
07 Countersunk head screw M5X16-4.8-SW 2 46622313516 $0.58
07 Countersunk head screw M5X25 6 07119928498 $0.58
08 Cap nut 2 46631453503 $2.61
09 Screw 2 46631453505 $2.61
10 Screw 2 46631453993 $2.61
11 Windshield 1 46631450591 $340.48 ENDED, +core
12 Slipstream deflector 1 46631455020 $101.96
14 Badge RT CR 1 51141453154 $12.89 ENDED
16 Spacer bush 4 46631455998 $0.84
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
